Duct fan SSDL100-1EC
centrifugalfor air circulation230VAC

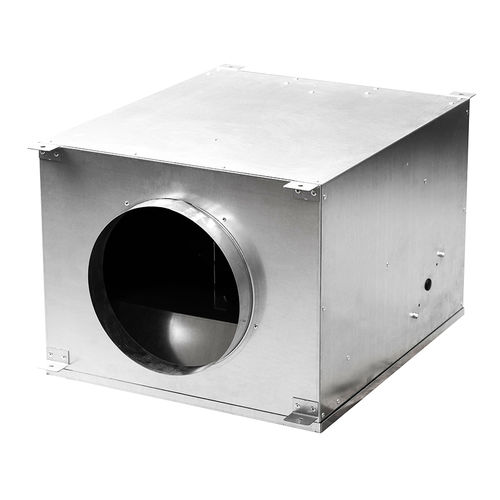

Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC
Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC
Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC - image - 2
Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC - image - 3
Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC - image - 4
Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC - image - 5
Duct fan - SSDL100-1EC - ELTA FANS - centrifugal / for air circulation / 230VAC - image - 6
Add to favorites
Compare this product

Characteristics

Type
duct
Configuration
centrifugal
Function
for air circulation
Supply voltage
230VAC, 220VAC, 240VAC
Drive mechanism
EC motor
Material
steel
Applications
industrial, commercial
Other characteristics
in-line, backward curved
Air flow

Max.: 0.135 m³/s
(4.767 ft³/s)

Min.: 0.036 m³/s
(1.271 ft³/s)

Diameter

100 mm
(3.937 in)

Rotational speed

1,495 rpm, 2,455 rpm, 3,205 rpm, 3,665 rpm
(9,393 rad.min-1, 15,425 rad.min-1, 20,138 rad.min-1, 23,028 rad.min-1)

Noise level

Max.: 84 dB

Min.: 54 dB

Description

• Standard size 100mm • Air volume flow rates up to 0.135 m3/s • Static pressures up to 618 Pa • Suitable for operating temperatures up to +60℃ • Suitable for External Mounting • Acoustically lined as standard • Configurable with optional terminal box, demand control and spigot type • Available in EC Singleflow SSDL fans are suitable for external mounting. The range incorporates advanced backward curved impellers. Easy Installation All models are designed for direct connection to standard diameter flexible or rigid circular ducting with long spigots. Easy Commissioning Integrated commissioning control allows single speed selection and also limits maximum speed if used with an external potentiometer. Efficient Performance High efficiency low tonal noise backward curved centrifugal impellers are directly driven by an EC external rotor motor, provide low specific fan powers and stepless speed control without tonal noise generation. Controllability EC motors provide precise speed control via potentiometer, BMS or Elta Fans DCV control. Reduced fan speeds can provide significant cost-savings through lower energy consumption in both mechanical energy of motors and also on the conditioning of replacement air.
