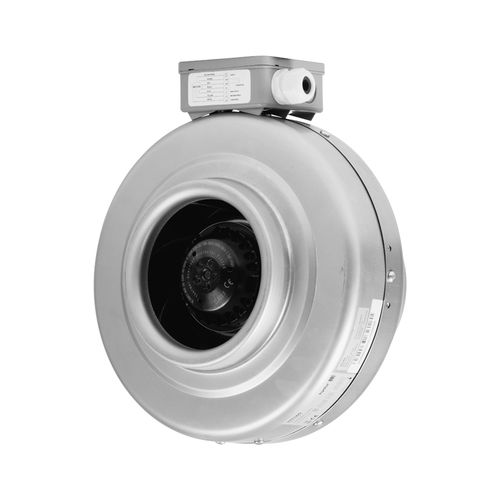

Centrifugal fan Versaline VL200

cooling230VAC400VAC

Centrifugal Inline Fan • Standard size 200mm • Air volume flow rates up to 0.243 m3/s • Static pressures up to 465 Pa • Suitable for operating temperatures up to +50℃ • Available in AC All metal inline centrifugal fans which are ideally suited to a wide range of commercial and industrial applications. They provide the ideal solution for high performance requirements in low airflow, medium pressure systems. Easy Installation All models are designed for direct connection to standard diameter flexible or rigid circular ducting with 25mm long spigots for ease of connection. The integral mounting bracket provides a fast, simple approach to fixing the fan in position. Space Saving A compact casing design, combined with high performance makes the product ideal for ceiling void mounting. Efficient Performance The single inlet, single width backward curved centrifugal impeller is designed to be non overloading and self cleaning ensuring efficiency.
