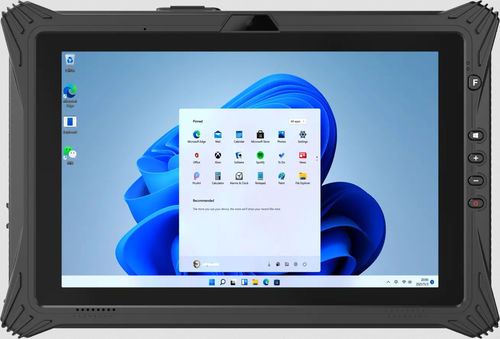

Windows 11 tablet EM-I10L

Windows 11 ProWindows 11 IoT Enterprise10.1"

Overview
The EM-I10L is a 10.1-inch Windows rugged AI tablet powered by the Intel Core Ultra 5 processor. Designed for field service, industrial inspection, logistics, manufacturing and mobile operations, it combines CPU, GPU and NPU computing for edge AI workloads with a sunlight-readable high-brightness display, secure access options and hot-swappable battery support.

Key features

• Intel® Core™ Ultra 5 processor (optional Intel Core Ultra 7)
• Intel® Arc™ 130V / 140V GPU
• Windows 11 Pro (optional Windows 11 Home / IoT)
• 10.1-inch FHD display (1200 × 1920), 700 nits, sunlight readable
• 10-point capacitive touch; supports GP930 active pen
• IP65 protection and MIL-STD-810H certified rugged design
• Fingerprint module for secure access
• Thunderbolt 4 and USB 3.2 Gen2 interfaces
• Rich I/O: RJ45, RS232, USB 2.0 Type-A, USB 3.2 Type-A, mini HDMI 2.0a, 3.5 mm audio, SIM slot, micro SD (TF)
• 4-in-1 expansion module option (RJ45, RS232, USB 2.0, optional 1D/2D barcode reader)
• Wireless: Intel Wi‑Fi 6E, Bluetooth 5.4, GNSS (GPS/GLONASS)
• Cellular: 4G LTE standard; optional 4G/5G
• Dual hot-swappable battery design for extended field operation
• Optional NFC (HF-RFID), optional 1D/2D barcode reader, removable battery and docking/vehicle mounts

Basic parameters

• Dimensions: 289.9 × 196.7 × 21.2 mm
• Weight: 1,230 g
• Color: Black
• Display: 10.1" FHD (1200 × 1920), 700 nits
• Touch: 10-point capacitive, GP930 active pen support
• Cameras: Front 2.0 MP; Rear 13.0 MP
• I/O: micro SD ×1; SIM ×1; USB 3.2 Gen2 Type-A ×1; Thunderbolt 4 ×1; 3.5 mm audio ×1; HDMI 2.0a mini ×1; 5.5 mm DC in ×1; 12-pin Pogo ×1; 4-in-1 module option
• Power adapter: 100–240V AC, 50/60Hz, 64.98W (19V/3.42A)

Wireless communications

• Wi‑Fi: Intel Wi‑Fi 6E (802.11ax)
• Bluetooth: v5.4
• Cellular: 4G LTE standard; optional 4G/5G
• GNSS: GPS / GLONASS

Performance parameters

• CPU: Intel Core Ultra 5 226V, 8 MB cache, up to 4.5 GHz, 8 cores / 8 threads, 17W TDP (optional Ultra 7)
• GPU: Intel Arc 130V / 140V
• OS: Windows 11 Pro (optional Home / IoT)
• Memory: 16 GB LPDDR5x onboard (32 GB optional for Ultra 7)
• Storage: 256 GB PCIe SSD standard; optional 512 GB / 1 TB

Battery performance

• Main battery: Li‑ion 7.4V / 5000 mAh (approx. 7 h)
• Optional: Li‑ion 7.4V / 9800 mAh; auxiliary 7.4V / 860 mAh; separate 3V / 210 mAh RTC
• Dual hot‑swappable battery design for continuous field operation

Data collection & expansion

• NFC: Optional HF‑RFID (NFC) reader
• Barcode: Optional 1D/2D barcode reader (module)
• Fingerprint: Optional fingerprint scanner

Product reliability

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: up to 95% non‑condensing
• Protection: IP65; MIL‑STD‑810H certified; ESD: ±8 kV contact / ±15 kV air
• Drop resistance: 4 ft / 1.22 m, 26 drops (sides, edges, corners)

Applications & typical usage
Designed for field service, industrial inspection, logistics, warehouse operations and mobile workflows that require ruggedness, long battery life, outdoor-readable display and on-device edge AI processing.

Technical specifications

• Model: EM-I10L
• Platform: Windows 11 Pro (optional)
• CPU options: Intel Core Ultra 5 (226V); optional Ultra 7
• GPU: Intel Arc 130V / 140V
• Display: 10.1" FHD (1200×1920), 700 nits
• Memory: 16 GB LPDDR5x (32 GB optional)
• Storage: 256 GB PCIe SSD (512 GB / 1 TB optional)
• Cameras: Front 2 MP / Rear 13 MP
• Connectivity: Wi‑Fi 6E, Bluetooth 5.4, GNSS, 4G LTE (5G optional), NFC (optional)
• I/O: Thunderbolt 4, USB 3.2, USB 2.0, RJ45, RS232, mini HDMI, audio jack, SIM, micro SD, Pogo pin
• Battery: 5000 mAh main + 860 mAh built‑in; optional 9800 mAh; hot‑swappable
• Ruggedness: IP65, MIL‑STD‑810H, drop and ESD protection
