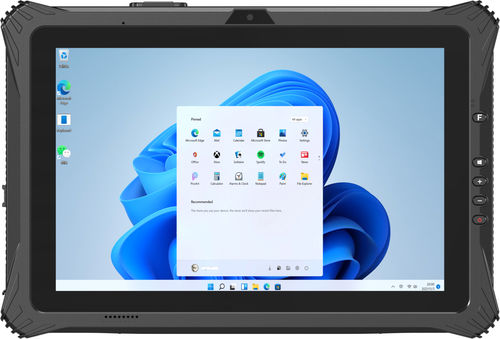

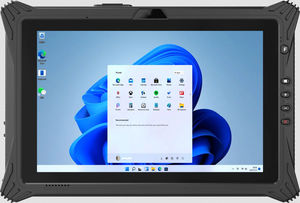

Windows 11 Pro tablet EM-I20L

Windows 11 IoT Enterprise12.2"Intel® Core™ Ultra

Overview
The EM-I20L Rugged AI Tablet integrates Intel Core Ultra 5 performance with ruggedized protection for industrial field use. It runs Windows 11 Pro, offers a 12.2-inch 700-nit FHD touchscreen, multiple connectivity options (Wi‑Fi 6E, optional 4G/5G, GPS/GLONASS), Thunderbolt 4 and flexible data-collection modules including HF‑RFID (NFC) or an optional 1D/2D barcode reader.

Key features

• Intel Core Ultra 5 (226V) processor; optional Intel Core Ultra 7
• Intel Arc 130V/140V GPU
• Windows 11 Pro (optional Windows 11 Home / IoT)
• 12.2-inch FHD touchscreen, 1920 x 1200, 700 nits, sunlight readable
• 16GB LPDDR5x onboard (optional 32GB for Ultra 7), 256GB PCIe SSD (optional 512GB / 1TB)
• Wi‑Fi 6E (Intel), Bluetooth 5.4
• Cellular: 4G LTE standard; optional 4G/5G
• GNSS: GPS/GLONASS
• Edge AI capability: up to 97 TOPS (optional 115 TOPS)
• Fingerprint scanner for secure access; optional NFC (HF‑RFID)
• Hot‑swappable 6300mAh battery + built‑in 860mAh battery for long standby
• Rugged: IP65 compliant, MIL‑STD‑810H; 4 ft / 1.22 m drop resistance (26 drops)

Display & Input

• 12.2 inch FHD (1920 x 1200), 700 nits, sunlight readable
• 10-point capacitive touch, supports GP930 active pen
• Front camera: 2.0 MP; Rear camera: 13.0 MP

Memory & Storage

• Standard: 16GB LPDDR5x onboard
• Optional: 32GB LPDDR5x onboard (for Ultra 7 258V)
• Storage: 256GB PCIe SSD standard; optional 512GB / 1TB PCIe SSD

Connectivity

• Intel Wi‑Fi 6E (802.11ax)
• Bluetooth V5.4
• 4G LTE standard; optional 5G
• GPS/GLONASS
• Optional HF‑RFID (NFC)

I/O & Expansion

• Micro SD card slot ×1
• SIM card slot ×1
• USB 3.2 Gen2 Type-A ×1
• Thunderbolt 4 ×1
• Mini HDMI 2.0a ×1
• 3.5 mm audio jack ×1
• 5.5 mm DC in jack ×1
• 12-pin pogo pin ×1 (charge and USB)
• 4-in-1 expansion module: RJ45 ×1, optional RS232 ×1, USB 2.0 Type-A ×1, optional 1D/2D barcode reader ×1

Power & Battery

• AC adapter: 100–240V, 50/60Hz, 64.98W (19V/3.42A)
• Primary removable / hot-swappable battery: Li-ion 7.4V / 6300mAh
• Built-in battery: Li-ion 7.4V / 860mAh; separate RTC battery 3V / 210mAh

Data collection & Security

• Optional HF‑RFID (NFC) reader
• Optional 1D/2D barcode reader
• Fingerprint scanner for secure access

Environmental & Reliability

• Operating temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
• Humidity: 95% (non-condensing)
• Protection: IP65; MIL‑STD‑810H certified
• ESD: ±8kV (contact), ±15kV (air)
• Drop: 4 ft / 1.22 m, 26 drops (each side, edge, corner)

Accessories (standard / optional)

• Standard: Hand-strap, Carry handle, Adapter, Cable
• Optional: Docking charger, Vehicle mount, Quad charging dock, Removable battery

Technical specifications

• Model: EM-I20L
• Dimensions: 339.3 x 230.3 x 26 mm
• Weight: 1500 g
• Color: Black
• Display: 12.2 inch FHD, 1920 x 1200, 700 nits
• Touchscreen: 10-point capacitive (GP930 active pen supported)
• CPU: Intel Core Ultra 5 (226V); optional Intel Core Ultra 7
• GPU: Intel Arc 130V / 140V
• OS: Windows 11 Pro (optional Home / IoT)
• Memory: 16GB LPDDR5x onboard (32GB optional)
• Storage: 256GB PCIe SSD (512GB / 1TB optional)
• Camera: Front 2.0 MP; Rear 13.0 MP
• Wireless: Wi‑Fi 6E, Bluetooth 5.4
• Cellular: 4G LTE (optional 5G)
• GNSS: GPS / GLONASS
• Ports: Micro SD ×1, SIM ×1, USB 3.2 Gen2 Type-A ×1, Thunderbolt 4 ×1, Mini HDMI 2.0a ×1, 3.5 mm audio jack ×1, DC in 5.5 mm ×1, 12-pin pogo pin ×1
• Expansion module: RJ45, optional RS232, USB 2.0 Type-A, optional barcode reader
• Battery: 7.4V/6300mAh hot-swappable + 7.4V/860mAh built-in; RTC battery 3V/210mAh
• AC Adapter: 100–240V, 50/60Hz, 64.98W (19V/3.42A)
• Ruggedness: IP65, MIL‑STD‑810H, ESD ±8kV/±15kV, 4 ft / 1.22 m drop (26 drops)
• Operating temp: -20 °C to 60 °C; Storage temp: -30 °C to 70 °C; Humidity: 95% non-condensing
• AI capability: Up to 97 TOPS (optional 115 TOPS)
