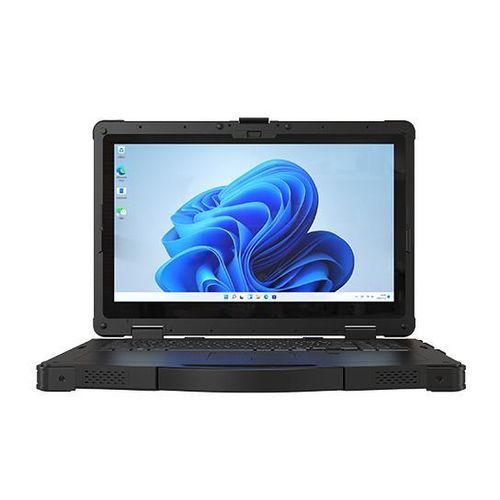

Intel® Core™ Ultra 7 155H laptop computer EM-X15M

Windows 11 ProruggedIP65

Overview
15.6-inch AI Rugged PC EM-X15M: Intel Core Ultra processor with integrated Arc graphics and dedicated NPU for local AI inference. Windows 11 Pro, dual memory and storage slots, MIL-STD-810H and IP65 certified for demanding field environments.

Key highlights

• Intel® Core™ Ultra CPU with dedicated NPU for edge AI workloads and local inference
• Intel® Arc™ graphics (Xe LPG) for accelerated visual computing and video processing
• Windows 11 Pro with Windows Copilot support (dedicated Copilot button)
• Rugged construction: ABS+PC body with reinforced metal top panel; MIL-STD-810H and IP65 certified
• 15.6" 1920×1080 display up to 1000 nits; optional 10-point capacitive touch with glove support and >7H hardness
• Dual SO-DIMM memory slots and dual M.2-2280 storage slots for expandability
• Thunderbolt 4 (up to 40 Gbps), HDMI 2.0, RJ45 Gigabit Ethernet, RS232 and extensive I/O
• Optional 4G/5G via M.2 modules; Intel Wi‑Fi 6E and Bluetooth 5.3

Main product details

• Model name: EM-X15M
• Form factor: 15.6-inch rugged laptop / large-screen rugged AI PC
• Primary uses: field service, industrial workflows, outdoor operations, inspection, emergency response, edge AI computing

I/O & Expansion

• USB3.2 ×1, USB3.0 ×1, USB2.0 ×1, Type-C (supports Thunderbolt 4)
• 3.5mm earphone jack ×1
• HDMI 2.0a mini ×1
• SIM card slot ×1, TF card slot ×1
• RJ45 ×1 (10/100/1000 Mbps)
• RS232 ×1 (9 fully functional lines)
• DC19V/3.78A (∮5.5mm) power interface ×1
• Anti-theft lock slot ×1
• Right-side cooling vent ×1
• Left-side expansion slot: optional M.2-2280 PCIe (supports SSD)
• Optional M.2 E-KEY interface for custom modules
• Optional 12-pin pogo pin (USB & charging) ×1

Software & Management

• Operating system: Windows 11 Pro
• Control Center for device management: system information, quick control panel, battery management, backup & restore, custom settings/shortcuts

Accessories (examples)

• DC19V/3.78A adapter (standard)
• Removable main battery (optional)
• Battery quad-charging dock (optional)

Technical specifications

• Dimensions: 407 × 305.8 × 45.5 mm
• Weight: 3.53 kg
• Color: Black
• Display: 15.6 inch, 16:9, 1920×1080, up to 1000 nits
• Touch: Optional 10-point capacitive; hardness >7H; scratch-resistant; supports glove touch
• Front camera: 5.0 MP with physical privacy shutter
• CPU: Intel® Core™ Ultra 7 155H (16 cores / 22 threads)
• GPU: iGfx/dGfx (Intel Arc, Xe LPG)
• Memory: Standard 16GB DDR5 SO-DIMM; optional 32GB; dual slots
• Storage: 256GB PCIe SSD standard; optional 512GB/1TB; dual M.2-2280 slots
• Wireless: Intel® Wi‑Fi 6E (802.11ax); Bluetooth 5.3
• Cellular: Optional 2G/3G/4G/5G via M.2 module
• GNSS: GPS (default) or GLONASS support
• Battery: AC adapter 100–240V input; adapter output 19V/3.78A 71.82W; removable main battery 56Wh + built-in 14.4Wh backup; typical runtime ~6–8 h depending on configuration
• Data modules: Optional NFC; fingerprint (standard); 1D/2D scanner not included
• Power modes: Normal / Reserve / Reserve Cycle for battery protection
• Operating temperature: -20 ℃ to 60 ℃; Storage: -30 ℃ to 70 ℃; Humidity: 95% non-condensing
• Ingress & shock: IP65; MIL-STD-810H; drop resistance ~1.2 m
• Thunderbolt 4: up to 40 Gbps; supports dual 4K or single 8K output
• Audio & input: Stereo speakers (dual 4Ω 3W), backlit keyboard, numeric keypad, enhanced touchpad
• Security: Physical camera privacy shutter; RF wireless toggle; encrypted M.2 E-Key support; fingerprint login; optional NFC access control
