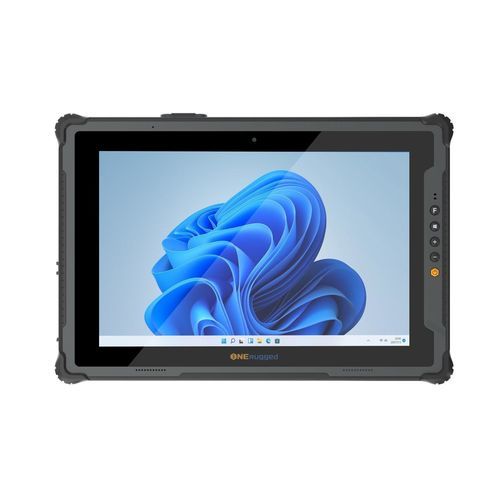

Windows 11 Pro tablet M20L

Windows 11 IoT EnterpriseWindows 1112.2"

Product introduction
The M20L is a 12.2-inch rugged AI tablet engineered for industrial edge computing and field operations. Equipped with Intel® Core™ Ultra 5 226V (up to 40 TOPS AI), IP65 protection and MIL-STD-810H certification, the M20L balances industrial durability with advanced AI-capable processing and modular connectivity.

Highlights

• 12.2-inch FHD (1200 x 1920), 700 nits, glove-touch
• Intel® Core™ Ultra 5 processor 226V (optional Ultra 7 models)
• Windows 11 Pro (optional Windows Home / IoT)
• IP65 and MIL-STD-810H certified

Performance

• Intel® Core™ Ultra 5 226V with up to 40 TOPS AI performance; optional Core™ Ultra 7 (256V / 258V)
• Intel Arc™ integrated graphics suitable for edge AI workloads

Operating system

• Windows 11 Pro standard; Windows 11 Home or Windows IoT optional

Display & Touch

• 12.2-inch FHD (1200 x 1920) at 700 nits for outdoor readability
• 10-point capacitive touch with glove support

Memory & Storage

• 16GB LPDDR5x onboard (optional 32GB)
• 256GB PCIe SSD standard (optional 512GB / 1TB)
• Integrated TPM module for hardware-level security

Connectivity

• Intel® Wi‑Fi 6E and Bluetooth® 5.4
• Integrated 4G LTE standard; optional 5G and NFC
• GNSS support (GPS, GLONASS)

Interfaces & Expansion

• Thunderbolt 4 (Type-C), USB 3.2 (Type-A), HDMI 2.1a mini, 3.5 mm audio
• Micro SD and SIM slots, 12-pin Pogo for charging/USB, 5.5 mm DC in
• 4-in-1 expansion module: default Gigabit Ethernet (RJ45); optional RS232 (D-sub 9), USB 2.0, or 1D/2D barcode reader

Battery & Runtime

• Hot-swappable external Li-ion 7.4V 6300mAh (approx. 9.6 h)
• Built-in backup Li-ion 7.4V 860mAh and separate RTC battery 3V/210mAh
• AC adapter 100–240V, 50–60Hz, 64.98W (19V/3.42A)

Ruggedness & Environmental

• IP65 ingress protection and MIL-STD-810H certified
• Drop resistance: 4 ft, 26 drops across faces, edges and corners
• ESD protection ±8kV contact / ±15kV air; operating −20°C to 60°C

Cameras & Audio

• 5 MP front camera (fixed focus) and 13 MP rear camera with flashlight (autofocus)
• Integrated microphone and 1W speaker

Applications

• Industrial edge computing, field inspections, utilities and energy, transportation, warehouse and inventory management

Technical specifications

• Model: M20L
• Dimensions: 340.15 mm × 231.23 mm × 26.19 mm
• Weight: 1500 g
• Display: 12.2-inch FHD, 1200 x 1920, 700 nits
• Touch: 10-point capacitive, glove support
• Audio & Cameras: 1W speaker, microphone; 5 MP front, 13 MP rear with flashlight
• I/O: Micro SD ×1, SIM ×1, USB 3.2 Type-A ×1, Thunderbolt 4 Type-C ×1, HDMI 2.1a mini ×1, 3.5 mm jack ×1, 5.5 mm DC in ×1, 12-pin Pogo ×1
• 4-in-1 Module: Default Gigabit Ethernet (RJ45) ×1; optional RS232 (D-sub 9), USB 2.0 Type-A, or 1D/2D barcode reader
• OS: Windows 11 Pro (optional Home / IoT)
• Processor: Intel® Core™ Ultra 5 226V (8 MB cache, up to 4.5 GHz, 8 cores)
• Graphics: Intel® Arc™ 130V/140V
• Memory: 16GB LPDDR5x (optional 32GB)
• Storage: 256GB PCIe SSD (optional 512GB / 1TB)
• Battery: External 7.4V 6300mAh (hot-swappable), internal 7.4V 860mAh; RTC 3V/210mAh
• Charging: AC adapter 100–240V, 64.98W (19V/3.42A)
• Wireless: Intel® Wi‑Fi 6E, Bluetooth® 5.4; WAN: 4G LTE standard, optional 5G
• Security: TPM 2.0, fingerprint scanner; optional HF‑RFID (NFC)
• Durability: IP65, MIL‑STD‑810H; drop resistance & ESD as above
• Environment: Oper. −20°C to 60°C; Storage −30°C to 70°C; Humidity 95% non‑condensing
• Accessories: Standard adapter, AC cable, hand strap, carry handle; optional docking charger, vehicle mount, removable battery, quad charger
