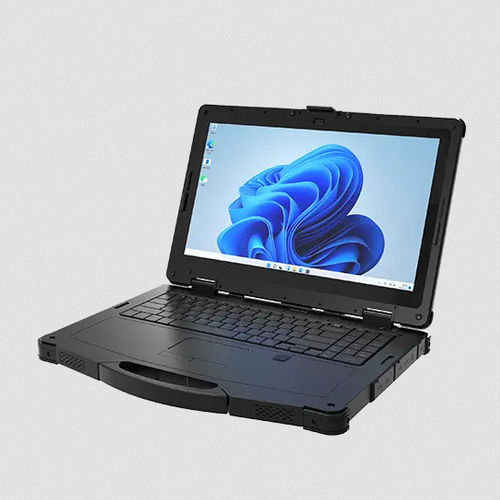

Intel® Core™ Ultra 7 155H laptop computer EM-X14M

Windows 11 ProruggedIP65

Overview
The EM-X14M is a 14" rugged AI PC (Windows 11 Pro) engineered for industrial and field deployments. It pairs an Intel® Core™ Ultra 7 155H processor with an integrated NPU and Intel Arc graphics to support on-device AI inference, visual computing and mobile productivity in harsh environments. Certified to IP65 and MIL‑STD‑810H with a dual-battery architecture for extended operation.

Key features

• Intel® Core™ Ultra 7 155H with integrated NPU for on-device AI acceleration
• Intel® Arc™ Graphics (Xe LPG) - up to 8 Xe cores, DX12 Ultimate, ray tracing, AV1
• 14" Full HD (1920×1080) fully laminated 1000 nits display; optional 10‑point capacitive touch with glove support
• Rugged certifications: IP65, MIL‑STD‑810H; 1.2 m drop resistance
• Comprehensive I/O: Thunderbolt 4 (Type‑C), HDMI 2.0a mini, multiple USB ports, RJ45 Gigabit, RS232
• Dual-battery system: removable 56Wh + internal 14.4Wh; hot‑swappable removable battery option
• Windows 11 Pro with dedicated Copilot access button and Emdoor Control Center for system management

Performance & OS

• CPU: Intel® Core™ Ultra 7 155H (hybrid performance/efficiency architecture)
• GPU: Integrated/dedicated Intel Xe / Intel Arc Graphics
• OS: Windows 11 Pro
• Memory: 16GB DDR5 SO‑DIMM standard; optional 32GB; dual slots (expandable)
• Storage: 256GB PCIe SSD standard; optional 512GB / 1TB; dual storage slots

Display & Input

• 14" 16:9, 1920×1080, 1000 nits high‑brightness fully laminated panel
• Optional 10‑point capacitive touch, >7H hardness, scratch‑resistant, supports glove touch
• Backlit keyboard, enhanced touchpad, stereo speakers
• Front camera: 5.0MP with physical privacy shutter

I/O & Expansion

• USB3.2 ×1, USB3.0 ×1, USB2.0 ×1
• Type‑C (Thunderbolt 4 support)
• 3.5 mm audio jack ×1; HDMI 2.0a mini ×1
• SIM slot ×1, TF card slot ×1
• RJ45 Gigabit Ethernet ×1 (10/100/1000M); additional RJ45 via USB2.0 adapter supported
• RS232 ×1 (9 functional lines)
• DC19V/3.78A power input; anti‑theft lock slot; left expansion slot for optional M.2‑2280 PCIe SSD
• Optional M.2 E‑Key for custom modules; optional 12‑pin pogo for USB & charging

Wireless & Positioning

• Intel® Wi‑Fi 6E (802.11ax)
• Bluetooth® 5.3
• Optional 4G / optional 5G via M.2 cellular module
• GNSS: GPS (default) or GLONASS support

Battery & Power

• Built‑in battery: polymer Li‑ion 1300mAh / 11.1V (~14.4Wh) — used as internal reserve
• Removable hot‑swappable battery: 4850mAh / 11.55V (~56Wh) — combined runtime up to ~8 hours depending on configuration and workload
• Dual‑battery management with Normal/Reserve/Reserve Cycle modes and intelligent charging calibration
• Power adapter: AC100–240V input, 19V/3.78A (71.82W) output

Data collection & Security

• Optional NFC
• 1D/2D barcode scanning: not standard
• Fingerprint reader: standard
• Physical privacy shutter for front camera; encrypted expansion via M.2 E‑Key; Quick RF toggle for wireless on/off

Reliability & Environmental

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: up to 95% (no condensation)
• Protection: IP65; MIL‑STD‑810H certified
• Drop resistance: 1.2 m

Software & Management

• Emdoor Control Center: system info, Wi‑Fi/GPS toggles, battery settings, backup & restore, shortcuts
• Dedicated Copilot access button to accelerate AI‑assisted workflows (availability depends on region/configuration)

Accessories (examples)

• DC19V/3.78A adapter (standard)
• Removable battery (optional)
• Quad battery charging dock (optional)

Industry scenarios

• Edge AI in industrial manufacturing (predictive maintenance, automated inspection)
• Surveying & mapping (field data collection, high‑precision modeling)
• Automotive diagnostics and field troubleshooting
• Field inspection, railway inspection and other demanding outdoor workflows

Technical specifications

• Model: EM‑X14M
• CPU: Intel® Core™ Ultra 7 155H
• GPU: Intel Xe / Intel Arc (iGfx / dGfx)
• OS: Windows 11 Pro
• Display: 14" 16:9, 1920×1080, 1000 nits
• Touch: optional 10‑point capacitive; hardness >7H; glove support
• Memory: 16GB DDR5 SO‑DIMM standard; optional 32GB; dual slots
• Storage: 256GB PCIe SSD standard; optional 512GB / 1TB; dual slots
• Camera: Front 5.0MP with physical shutter
• I/O: USB3.2×1, USB3.0×1, USB2.0×1, Type‑C (Thunderbolt 4), 3.5mm jack, HDMI 2.0a mini, SIM×1, TF×1, RJ45 Gigabit, RS232×1, DC19V/3.78A, anti‑theft slot
• Expansion: optional left M.2‑2280 PCIe SSD slot, optional M.2 E‑Key, optional 12‑pin pogo
• Wireless: Intel® Wi‑Fi 6E, Bluetooth 5.3; optional 4G/5G via M.2
• GNSS: GPS (default) / GLONASS
• Battery: internal ~14.4Wh (1300mAh/11.1V) + removable ~56Wh (4850mAh/11.55V), hot‑swappable
• Dimensions: 363.2 × 287.4 × 42.1 mm
• Weight: 2.97 kg
• Color: Black
• Power adapter: AC100–240V input; 19V/3.78A (71.82W) output
• Security: fingerprint reader (standard), encrypted expansion option, RF toggle, camera shutter
• Durability: IP65, MIL‑STD‑810H, 1.2 m drop resistance
• Operating temp: -20°C to 60°C; Storage temp: -30°C to 70°C; Humidity: 95% (no condensation)
