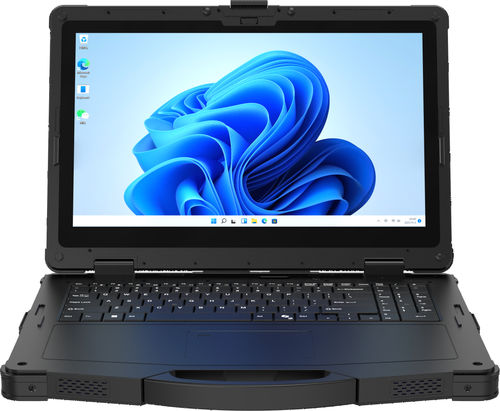

AMD Ryzen™ AI Max+ 395 portable computer workstation EM-A15AMD RadeonWindows 11Windows 11 IoT Enterprise
Add to favorites
Compare this product
Characteristics
- Processor
- AMD Ryzen™ AI Max+ 395
- Graphic chipset
- AMD Radeon
- Operating system
- Windows 11, Windows 11 IoT Enterprise, Windows 11 Pro
- Protection level
- MIL-STD-810H, IP65, rugged, 1.22m drop resistance
- Integrated peripheral
- 5-megapixel camera, webcam, with fingerprint reader
- Resolution
- 1920 x 1080, full HD, HD1080
- HDD capacity
- SSD 512 GB, SSD 1 TB
- Screen type
- IPS LCD, 1000 nits, sunlight-readable
- Network
- Wi-Fi, 4G, Bluetooth, GLONASS, GPS
- Domain
- outdoor, business
- Memory
- LPDDR5
- Screen size
39.6 cm
(15.6 in)- RAM capacity
Max.: 128 GB
Min.: 64 GB
Description
Overview
Key highlights
Basic parameters
Wireless Communications
Performance parameters
Battery Performance
Data collection & Security
Product reliability
Other notable features
Technical specifications
- Field-ready rugged AI workstation designed for edge AI inference and industrial missions. Combines desktop-class compute with certified environmental protection for continuous operation in harsh conditions.
Key highlights
- AMD Ryzen AI Max+ 395 processor; 126 TOPS total AI performance (Ryzen AI XDNA 2 NPU + CPU + GPU)
- Radeon 8060S Graphics with up to 96 GB variable graphics memory
- 15.6-inch FHD (1920×1080) sunlight-readable IPS display up to 1000 nits, anti-glare
- Up to 128 GB LPDDR5x memory (64 GB standard); dual NVMe PCIe 4.0 expansion
- Dual hot-swappable batteries (6355 mAh ×2) ~17 hours runtime; fast charge ~3h10min
- Rugged certifications: IP65, MIL-STD-810H; 1.22 m drop resistance; wide temperature range
- Rich industrial I/O including OCuLink, USB4 Type-C, HDMI 2.1, dual 1 GbE RJ45, RS232 D-sub
Basic parameters
- Dimensions: 397 mm × 300 mm × 41 mm; Weight: 3.56 kg; Color: Black
- Display: 15.6" FHD IPS (1920×1080), 1000 nits sunlight-readable
- Camera: 5.0 MP front camera
- I/O: USB 3.2 Gen1 Type-A ×2; USB4 Type-C ×1; OCuLink ×1; HDMI 2.1 ×1; Dual RJ45 10/100/1000M ×2; RS232 D-sub 9-pin ×1; SIM ×1; TF ×1; 3.5 mm audio; 5.5 mm DC in
- Power adapter: PD 100–240V 50/60Hz, 230W (19.5V/11.8A)
Wireless Communications
- Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be) tri-band 2.4/5/6 GHz
- Bluetooth 5.4
- Optional mobile: 4G LTE; Optional GNSS: GPS/GLONASS
Performance parameters
- CPU: AMD Ryzen AI Max+ 395 — 16 cores / 32 threads, up to 5.1 GHz, 64 MB cache, listed TDP 120W
- GPU: Radeon 8060S integrated graphics for AI acceleration and visualization
- OS: Windows 11 Pro / Home / IoT
- Memory: 64 GB LPDDR5 standard; optional up to 128 GB LPDDR5x
- Storage: 512 GB NVMe PCIe SSD standard; optional 1 TB; dual NVMe expansion (PCIe 4.0)
Battery Performance
- Battery: Li‑Ion 11.61 V, 6355 mAh ×2 (dual hot‑swap)
- Runtime: approx. 17.1 hours (manufacturer stated)
- Hot-swap design enables continuous field operation
- Fast charging: full charge in ~3 h 10 min with provided PD adapter
Data collection & Security
- NFC: No; 1D/2D scanning: No
- Fingerprint: Yes — built‑in fingerprint module for secure login
Product reliability
- Operating temperature: -20°C to 60°C; Storage: -30°C to 70°C
- Humidity: 95% non-condensing
- Protection: IP65 certified; MIL-STD-810H tested; Drop resistance: 1.22 m
Other notable features
- Dual 1000M RJ45 for stable industrial networking
- OCuLink for external GPU expansion to scale AI workloads
- Large touchpad with multi-finger gesture control and tactile L/R buttons
- Targeted applications: edge AI, local LLM inference, computer vision, industrial inspection, mission-critical field deployments
Technical specifications
- Model: EM-A15
- CPU: AMD Ryzen AI Max+ 395 (16 cores / 32 threads, up to 5.1 GHz, 64 MB cache)
- AI Performance: 126 TOPS total; NPU dedicated 50 TOPS (Ryzen AI XDNA 2)
- GPU: Radeon 8060S (up to 96 GB variable graphics memory)
- Display: 15.6" FHD IPS 1920×1080, 1000 nits, anti‑glare
- Memory: 64 GB LPDDR5 standard; optional 128 GB LPDDR5x
- Storage: 512 GB NVMe PCIe SSD standard; optional 1 TB; dual NVMe (PCIe 4.0)
- Battery: Dual 6355 mAh hot‑swappable (total 12,710 mAh)
- Power: PD 100–240V 50/60Hz, 230W (19.5V/11.8A)
- Dimensions & weight: 397 × 300 × 41 mm; 3.56 kg
- Rugged: IP65, MIL‑STD‑810H, 1.22 m drop resistant
- Operating temp: -20°C to 60°C; Storage temp: -30°C to 70°C
- I/O & Wireless: as listed above
- Security & input: Built‑in fingerprint sensor; enlarged HID touchpad; gesture control
