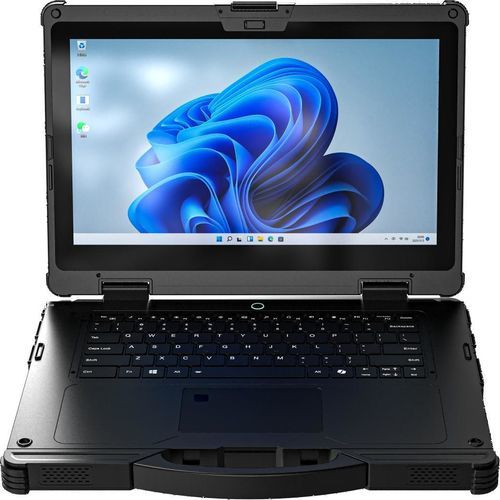

AMD laptop computer EM-A14

AMD RadeonWindows 11Windows 11 IoT Enterprise

Overview
EM-A14 is a 14-inch rugged AI laptop engineered for industrial field work, edge AI computing and mission-critical operations. It integrates the AMD Ryzen™ AI 7 350 processor with Ryzen AI XDNA 2 NPU delivering up to 66 TOPS total AI performance and AMD Radeon™ 860M graphics for visual AI tasks. The system offers a 14.0" FHD (1920×1080) IPS display up to 1000 nits, Windows 11 (Pro/Home/IoT) support, hot-swappable dual batteries and industrial-grade protection (IP65, MIL-STD-810H).

Key features

• 66 TOPS Edge AI computing (Ryzen AI XDNA 2 NPU + GPU acceleration)
• AMD Ryzen AI 7 350: 8 cores / 16 threads, up to 5.0 GHz, 16 MB cache, 4 nm, 54 W Performance TDP
• Radeon™ 860M integrated graphics for visual AI and 3D/industrial workloads
• Upgradable memory up to 64 GB DDR5 (dual slots)
• NVMe PCIe SSD storage (256 GB standard; optional 512 GB / 1 TB; dual M.2 PCIe 4.0 expansion)
• Dual hot‑swappable 6355 mAh batteries (total 2 × 6355 mAh), typical runtime ~17 hours, fast charge ~3.5 hours
• Advanced cooling: dual fans, dual heat pipes; supports up to 100 W TDP
• Rugged protection: IP65 and MIL‑STD‑810H; 1.22 m drop resistance; operating −20 °C to 60 °C

I/O Interface

• USB 3.2 Gen1 Type‑A ×2
• USB 3.2 Gen2 Type‑C ×1
• USB4 Type‑C ×1 (40 Gbps)
• OCuLink ×1 (external GPU expansion)
• HDMI 2.1 Type‑A ×1
• 3.5 mm audio jack ×1
• Ethernet RJ45 10/100/1000M ×2
• Serial RS232 (D‑sub 9‑pin) ×1
• SIM card slot ×1, TF/SD card slot ×1
• Fan ×2 (cooling)

Wireless communications

• Wi‑Fi 6 802.11a/b/g/n/ac/ax (M.2)
• Bluetooth® 5.2
• Optional mobile networks: 4G LTE
• Optional GNSS: GPS / GLONASS

Performance parameters

• CPU: AMD Ryzen AI 7 350 (8 cores, 16 threads, up to 5.0 GHz, 16 MB cache)
• GPU: Radeon 860M
• OS: Windows 11 Pro / Home / IoT
• Memory: 16 GB DDR5 (4800 MHz) standard; dual slots, up to 64 GB
• Storage: 256 GB NVMe PCIe SSD standard; optional 512 GB / 1 TB; dual M.2 PCIe 4.0 expansion

Battery Performance

• Batteries: Li‑ion, 11.61 V, 6355 mAh ×2 (hot‑swappable)
• Battery life: up to ~17 hours (typical, depends on configuration and workload)
• Hot‑swap support for continuous field operation
• Power adapter: PD 100–240 V, 50/60 Hz, 100 W (20 V / 5 A)

Data collection & peripherals

• Camera: front 5.0 MP
• NFC: No
• 1D/2D scanning: No
• Fingerprint: EYES

Product reliability & environmental

• Operating temperature: −20 °C to 60 °C
• Storage temperature: −30 °C to 70 °C
• Humidity: 95% non‑condensing
• Protection level: IP65 certified, MIL‑STD‑810H tested
• Drop resistance: 1.22 m

Dimensions & physical

• Dimensions: 356 mm × 269 mm × 41 mm
• Weight: 2.85 kg
• Color: Black
• Display: 14.0" FHD (1920×1080), IPS, 1000 nits, anti‑glare, sunlight‑readable

Other highlights

• Edge AI: Ryzen AI XDNA 2 NPU, 66 TOPS total AI, 50 TOPS NPU acceleration
• Industrial connectivity: OCuLink for external GPU, USB4 Type‑C (40 Gbps), HDMI 2.1, COM/RS232 for legacy equipment
• Input & control: enlarged HID touchpad (≈98% larger), 4‑finger gesture, tactile L/R buttons

Technical specifications

• Model: EM‑A14
• Processor: AMD Ryzen AI 7 350
• AI Performance: 66 TOPS (total), 50 TOPS NPU
• Graphics: Radeon 860M
• OS: Windows 11 Pro / Home / IoT
• Display: 14.0" FHD IPS, 1920×1080, 1000 nits
• Memory: 16 GB DDR5 default; up to 64 GB (dual slots)
• Storage: 256 GB NVMe SSD default; optional 512 GB / 1 TB; dual M.2 PCIe 4.0
• Batteries: Dual 6355 mAh, hot‑swappable; ~17 h runtime; fast charge ~3.5 h
• Cooling: Dual fans, dual heat pipes, supports 100 W TDP
• I/O: USB‑A ×2, USB‑C (3.2 Gen2) ×1, USB4 ×1, OCuLink ×1, HDMI 2.1 ×1, RJ45 ×2, RS232 ×1, 3.5 mm ×1, SIM ×1, SD/TF ×1
• Wireless: Wi‑Fi 6, Bluetooth 5.2, optional 4G LTE, optional GPS/GLONASS
• Camera: 5.0 MP front
• Protection: IP65, MIL‑STD‑810H; operating −20 °C to 60 °C; storage −30 °C to 70 °C; 95% non‑condensing humidity; 1.22 m drop resistance
• Dimensions: 356 × 269 × 41 mm; Weight: 2.85 kg; Color: Black
