Windows 11 Pro tablet M10L

Windows 11 IoT Enterprise10.1"Intel® Core™ Ultra

Product Introduction

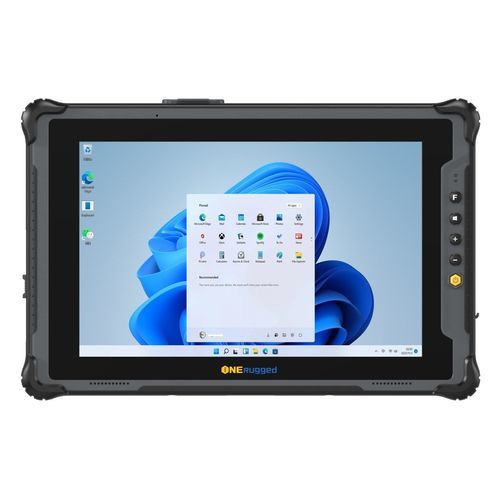

ONERugged M10L is a professional-grade 10.1-inch rugged AI tablet engineered for demanding field and industrial environments. Powered by Intel® Core™ Ultra 5 processor 226V, the M10L integrates advanced AI acceleration and a high-brightness sunlight-readable display in a durable, field-ready chassis.

Key Features

• Operating System: Windows 11 Pro (optional Windows 11 Home / IOT)
• Processor: Intel® Core™ Ultra 5 processor 226V (marketing claims up to 40 TOPS AI performance; marketing sections also state up to 120 TOPS overall compute power)
• Display: 10.1" FHD (1200 x 1920), 700 nits (optional 1000 nits), sunlight-readable, glove-touch capable (10-point capacitive)
• Memory & Storage: 16GB LPDDR5x on board (optional 32GB for Ultra 7 258V), 256GB PCIe SSD (optional 512GB / 1TB)
• Graphics: Intel® Arc™ GPU (130V/140V referenced)
• Connectivity: Intel® Wi‑Fi 6E (802.11ax), Bluetooth® 5.4, integrated 4G LTE (optional 5G), integrated NFC module available
• I/O & Expansion: Thunderbolt 4 (Type-C), USB 3.2 (Type-A), Mini HDMI (HDMI 2.1a mini), 3.5mm audio jack, Micro SD slot, SIM slot, 5.5mm DC in jack, 12-pin Pogo pin (charge & USB)
• 5-in-1 Expansion Module: Default 10/100/1000M Ethernet; optional serial RS232 (D-sub 9-pin), USB 2.0, 1D/2D barcode reader, or combo 1000M RJ45 + USB 3.0
• Imaging & Audio: 5MP front camera, 13MP rear camera with flashlight (AF); integrated microphone and 1W speaker
• Power & Battery: Hot-swappable design with removable 5000mAh Li-ion battery (7.4V) plus built-in 860mAh battery; optional 9800mAh ultra-capacity extension; AC adapter 100–240V (19V/3.42A, 64.98W)
• Ruggedness & Certification: IP65 rated, MIL-STD-810H certified, drop-resistant (4 ft / 26 drops tested), ESD ±8kV contact / ±15kV air, certifications CE & FCC

Highlights & Marketed Advantages

• Excellent Performance: Intel® Core™ Ultra 5 (3nm process, up to 4.5GHz, 8 cores / 8 threads; TDP example 17W; marketing references up to 37W TDP peak scaling)
• High-speed Memory & Storage: LPDDR5x and PCIe SSD architecture for fast multitasking and large-file handling (configurable up to 32GB / 1TB)
• Sunlight-Readable Screen: 700 nits standard (optional 1000 nits), glove-touch support and 10.1" FHD panel for outdoor clarity
• Mobile Communication: Wi‑Fi 6E, Bluetooth 5.4, standard 4G LTE (detailed LTE bands listed), optional 5G for broadband connectivity
• Uninterrupted Runtime: Hot-swappable dual-battery design enabling standby and extended field runtime
• Extensive Industrial Interfaces: Thunderbolt 4, USB 3.2, Mini HDMI, audio jack, TF/SIM, DC-in, pogo pins, and modular 5-in-1 expansion for RJ45/RS232/barcode scanning
• Field Tough Durability: Designed for extreme temperatures (-20°C to 60°C operating), humidity tolerance, dust/water protection and repeated drop resilience

Technical specifications

• Model: M10L
• Dimensions: 292.1 mm (L) × 192.1 mm (W) × 23.8 mm (H)
• Weight: 1290 g
• Display: 10.1" FHD, Resolution 1200 x 1920, Brightness 700 nits (optional 1000 nits)
• Touch Panel: 10-point capacitive touch, supports glove touch
• Operating System: Windows 11 Pro (optional Windows 11 Home / IOT)
• Processor: Intel® Core™ Ultra 5 processor 226V (8MB cache, up to 4.5GHz, 8 cores, 8 threads, example TDP 17W)
• Graphics: Intel® Arc™ 130V / 140V GPU
• Memory: 16GB LPDDR5x on board (optional 32GB LPDDR5x for Ultra 7 processor 258V)
• Storage: 256GB PCIe SSD (optional 512GB / 1TB PCIe SSD)
• Battery & Charging: Li‑ion 7.4V 5000mAh (approx. 7.6h), optional 7.4V 9800mAh; built-in Li‑ion 7.4V 860mAh; separate 3V/210mAh RTC; AC adapter 100–240V, 19V/3.42A (64.98W)
• Wireless: Intel® Wi‑Fi 6E (802.11ax), Bluetooth® 5.4
• WAN: Standard 4G LTE (LTE‑FDD: B1/3/5/7/8/20/28; LTE‑TDD: B38/40/41; WCDMA: B1/5/8); optional 5G
• GNSS: GPS, GLONASS
• Security: Integrated TPM 2.0, fingerprint scanner; optional HF‑RFID (NFC) reader
• Audio & Camera: Integrated 1W speaker, integrated microphone; 5.0 MP front camera (MF), 13.0 MP rear camera with flashlight (AF)
• I/O Interface: Micro SD card ×1, SIM card ×1; USB 3.2 (Type‑A) ×1; Thunderbolt 4 (Type‑C) ×1; 3.5 mm audio jack ×1; HDMI 2.1a mini ×1; 5.5 mm DC in jack ×1; 12‑pin Pogo pin (charge & USB) ×1
• 5‑in‑1 Module: Default 10/100/1000M Ethernet (RJ45) ×1; optional RS232 (D‑sub, 9‑pin) ×1 / USB 2.0 (Type‑A) ×1 / 1D/2D barcode reader ×1 / 1000M RJ45 + USB 3.0
• Durability: IP65 compliant; MIL‑STD‑810H certified; Drop resistant to 4 ft (26 drops each side/edge/corner); ESD ±8kV contact / ±15kV air; Certifications: CE, FCC
• Operating Temperature: -20°C to 60°C (-4°F to 140°F); Storage Temperature: -30°C to 70°C (-22°F to 158°F); Humidity: 95% non‑condensing
• Standard Accessories: Adapter, AC cable, Hand strap, Carry handle
• Optional Accessories: Docking charger, Vehicle mount, Removable battery, Quad charging dock
• Marketing/Performance Notes: Marketing materials reference AI performance levels including "up to 40 TOPS AI" (processor note) and other sections referencing "120 TOPS AI" overall compute power; frequency and TDP scaling references (3nm process, up to 4.5GHz, up to ~37W peak referenced in marketing)
