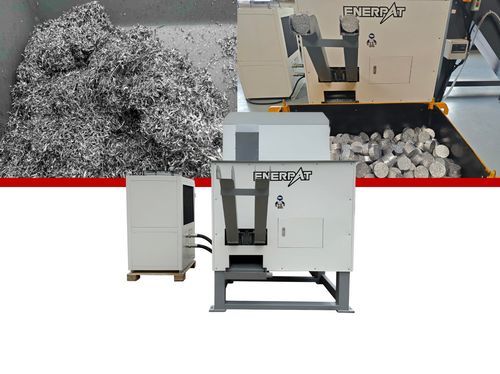

Metal chip briquette press BM series

chiphydraulicautomatic

Metal chip briquette press for aluminum chips, copper chips

The Enerpat BM series is a highly efficient solution for compressing metal chips into dense briquettes in a single operation. The equipment effectively separates cutting fluids (up to 95% oil recovery), ensuring cleanliness and compliance with environmental standards. The dual-head system increases productivity and reduces production cycles. Briquettes are easily recycled, increasing the value of scrap metal by 10-30% and reducing costs. Reliability is guaranteed with original components, a 1-year warranty on the press, and a 5-year warranty on the motor, with CE and ISO certifications.

Product Description
The Enerpat BM series dual-output metal chip compactor can compress metal chips generated during the manufacturing process, including iron chips, aluminum chips, stainless steel chips, copper chips, and titanium chips, into solid briquettes in one stroke. It also separates cutting fluid from waste, ensuring that briquettes remain stationary and leak-free, enhancing space utilization. With a 95% oil recovery rate, it effectively reduces oil pollution, optimizes the workshop environment, and passes environmental inspections. Additionally, it can increase recycling prices by 2000-3000 yuan per ton (using iron chips as an example), helping companies improve their economic benefits.

The BM series metal swarf compactor is widely used in the machinery and automotive industries, allowing for efficient processing and recycling of metal waste.

Operating Principle

• Conveying and Feeding: Waste chips are conveyed to the briquetting inlet via a screw conveyor.
• Double Screw Feeding: The design includes both horizontal and vertical double screws, ensuring smooth feeding of waste into the compression chamber.
• Hydraulic Compression: A combination of hydraulic and electronic control systems compresses the waste into briquette form and ejects them.

Material Testing
The equipment is suitable for various types of metal chips: alloys, iron chips, aluminum chips, copper chips.

Main Advantages

• Feeding Device: Uses a vertical screw for forced and stable feeding. The horizontal screw is equipped with an anti-bridging design, achieving powerful double-action feeding.
• Custom Cake Press Design: High hardness and high-density mold cavity, strong wear resistance, ensure uniform and solid pressing. Adjustable size for personalized needs.
• Cooling System: Industrial cooling operates 24/7. Options for fixed temperature setting or room temperature synchronization. Supports automated continuous operation across multiple shifts.
• Hydraulic System: Brand hydraulic cylinder with a 5-year warranty. Unique design, Baosteel round steel, equipped with Rexroth, Parker components, etc.
• PLC Control System: Siemens/Schneider PLC provides real-time monitoring, intelligent programming, automatic alarm systems, real-time data display.

Customer Feedback

• Daniel (Malaysia): The high efficiency and eco-friendly features of the BM4015 significantly improved productivity and helped achieve sustainability goals.
• Chen (Elevator Component Manufacturer): The BM-1612 line increased iron chip recycling, saved storage space, and reduced transportation costs.

Product Specification

Product Specification Sheet
Model | BM-1090 | BM-1612 | BM-2013
Press Force (tons) | 100 | 160 | 200
Bale Diameter (mm) | 90 | 120 | 130
Motor (kW) | 11 | 18.5 | 22
System Pressure (MPA) | 25 | 25 | 25
Equipment Dimensions (mm) | 2210 × 1050 × 1890 | 3220 × 1320 × 2400 | 3300 × 1420 × 2530
Equipment Weight (kg) | 3000 | 4000 | 5000
Operating Mode | Fully Automatic | Fully Automatic | Fully Automatic

Features / Specifications

• Series: BM
• Brand: ENERPAT
• Certifications: CE, ISO
• Warranty: 1 year on press, 5 years on motor
• Oil Recovery: up to 95%
• Increase in Scrap Metal Value: 10-30%
• Application: iron, aluminum, copper, titanium chips
• Fully automatic operation
