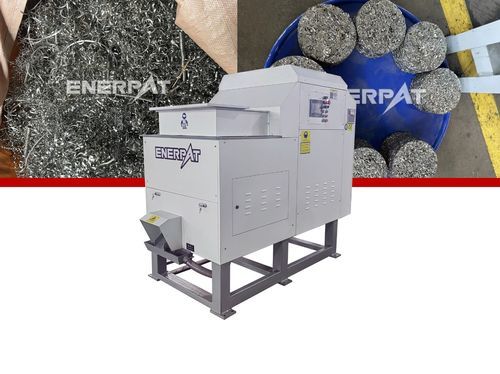

Metal chip briquette press BM series

for cylindrical briquetteshydraulicfully-automatic

Metal Chip Briquetting Machine for iron, aluminium, stainless steel, copper, titanium chips

Enerpat BM series is a single-outlet briquetting press machine designed to compact metal chips and turn metal scrap into dense briquettes. It accepts a wide range of alloys including iron, aluminium, stainless steel, copper, titanium and LNCO-type alloys. The machine reduces scrap volume, improves handling and optimises plant floor use while recovering lubricants for reuse.

Key benefits

• Efficient compaction: produces dense briquettes suitable for storage and transport.
• Oil recovery: up to 95% of oil can be recovered, reducing spills and contamination.
• Compliance: CE and ISO certification for industrial integration.
• Cost recovery: increases recovered metal value by approximately 280–420 USD per tonne.
• Reliable components: electrical parts from Siemens and Schneider for stable operation.
• Warranty: 1 year on the machine, 5 years on motor/key hydraulic components.
• Global support and after-sales service.

How it works

• Feeding and conveying: chips are fed into the charging chamber via a belt conveyor for briquetting.
• Double-screw feeding: horizontal and vertical twin-screw arrangement ensures continuous, blockage-free feed.
• Hydraulic compression: combined hydraulic and electronic control compresses scrap into briquette form and ejects finished briquettes.

Material testing

• Tested materials: alloy scraps, iron chips, aluminium chips, copper chips.

Technical specifications (table)
Model | BM-1090 | BM-1612 | BM-2013
Compression force (t) | 100 | 160 | 200
Bale diameter (mm) | 90 | 120 | 130
Motor (kW) | 11 | 18.5 | 22
System pressure (MPa) | 25 | 25 | 25
Machine dimensions (mm) | 2210 × 1050 × 1890 | 3220 × 1320 × 2400 | 3300 × 1420 × 2530
Machine weight (kg) | 3000 | 4000 | 5000
Operation mode | Fully automatic | Fully automatic | Fully automatic

Technical characteristics / specifications

• BM-1090: compression force 100 t; bale diameter 90 mm; motor 11 kW; pressure 25 MPa; dimensions 2210 × 1050 × 1890 mm; weight 3000 kg; fully automatic operation.
• BM-1612: compression force 160 t; bale diameter 120 mm; motor 18.5 kW; pressure 25 MPa; dimensions 3220 × 1320 × 2400 mm; weight 4000 kg; fully automatic operation.
• BM-2013: compression force 200 t; bale diameter 130 mm; motor 22 kW; pressure 25 MPa; dimensions 3300 × 1420 × 2530 mm; weight 5000 kg; fully automatic operation.
• PLC system (Siemens/Schneider): real-time monitoring, one-button control, intelligent programming and automatic maintenance alerts.
• Hydraulic system: cylinders from leading brands, high-strength round steel and wear-resistant components.
• Cooling system: industrial refrigeration unit for continuous operation and stable working temperatures.

FAQ
1. What is a metal chip briquetting machine used for?

A metal chip briquetting machine is used to compress metal swarf, chips, and turnings into dense briquettes. It helps factories reduce scrap volume, recover cutting fluids, and increase the recycling value of metal waste.

Common search terms:
metal chip briquetting machine
metal chip compactor
metal swarf briquetting machine

2. Which metals can be processed by a briquetting machine?

The machine can process both ferrous and non-ferrous metal chips, including:

Steel and iron chips
Aluminium chips
Copper chips
Stainless steel
Titanium
Alloy machining scrap

It is widely used in CNC machining workshops and metal processing factories.2. Which metals can be processed by a briquetting machine?

3. What are the benefits of metal chip briquetting?

The main benefits include:

Reduce scrap volume by up to 90%
Increase scrap resale value
Recover up to 95% of cutting oil
Improve factory cleanliness
Reduce transportation and storage costs

4. How does a metal briquetting press machine work?

The process includes:

Feeding metal chips into the hopper
Twin-screw feeding system ensures continuous input
Hydraulic compression forms dense briquettes
Finished briquettes are automatically ejected

5. What is the difference between BM-1090, BM-1612, and BM-2013?

These models differ in compression force and output capacity:

BM-1090 → 100 ton, small/medium production
BM-1612 → 160 ton, medium production
BM-2013 → 200 ton, high-capacity industrial use

6. How much oil can be recovered from metal chips?

The BM series can recover up to 95% of cutting fluid and oil from metal chips during compression.
