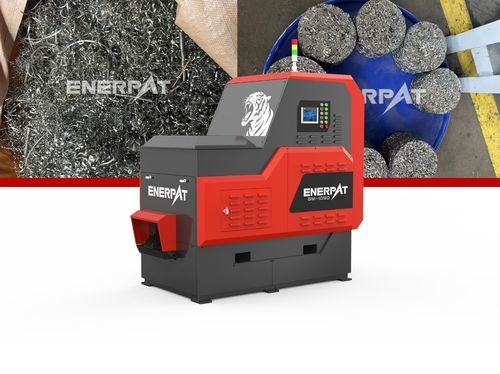

Metal chip briquette press BM series

chiphydraulicfor cylindrical briquettes

Metal Chip Briquetter ,Briquetting Press for Recycling Aluminum Turnings

ENERPAT BM Series Single Output metal chip briquetter compresses metal shavings into leak‑proof briquettes for safer storage and transport. The unit integrates a fluid separation system achieving up to 95% oil separation to reduce cutting fluid carryover. Constructed with industrial electrical and hydraulic components from Siemens and Schneider. Certifications: CE and ISO. Warranty: 1 year for the machine, 5 years for the motor. Global after‑sales network and U.S. warehouse support available.

Key Benefits

• Transforms loose metal chips into compact, leak‑proof briquettes for efficient handling and transport.
• High fluid separation rate (≈95%) reduces cutting fluid contamination and disposal costs.
• Improves recovered metal value (example: iron recovery value increase ≈ 280–420 USD/ton).
• Industrial‑grade electrical and hydraulic components from recognized manufacturers (Siemens, Schneider).
• Long motor warranty and CE/ISO certifications supporting regulatory compliance.

Applications

• Metal processing and recycling plants
• Automotive parts manufacturing
• Metal product and equipment fabrication
• Electrical machinery production
• Foundries and casting operations

Working Principle
Chips are conveyed to the briquetter inlet by a chip conveyor. A dual auger feed (horizontal + vertical) provides forced, continuous feeding into the compression chamber. Hydraulic press with electronic control compacts chips into briquettes then ejects them automatically. PLC control enables continuous, fully automated operation with monitoring and alarms.

Specification Sheet (summary)
Models: BM-1090, BM-1612, BM-2013
Press Force: 100 / 160 / 200 tons
Bale Diameter: 90 / 120 / 130 mm
Motor Power: 11 / 18.5 / 22 kW
System Pressure: 25 MPa
Dimensions (L×W×H mm): 2210×1050×1890 / 3220×1320×2400 / 3300×1420×2530
Weight (kg): 3000 / 4000 / 5000
Operation Mode: Fully automatic
Output Range: 1–20 t/h (customizable)

Additional Features

• Dual auger feeding design to prevent bridging and ensure stable feed.
• High‑hardness, high‑density mould cavity for uniform, firm briquettes; adjustable sizes.
• Optional industrial refrigeration/cooling for continuous multi‑shift operation.
• Brand hydraulic cylinders and components with extended service life.
• PLC control (Siemens/Schneider) for one‑button operation, real‑time monitoring and alarms.

Technical specifications

• Model/Series: BM series
• Brand: ENERPAT
• Available models: BM-1090, BM-1612, BM-2013
• Press Force: 100 / 160 / 200 tons
• Bale Diameter: 90 / 120 / 130 mm
• Motor power: 11 / 18.5 / 22 kW
• System pressure: 25 MPa
• Dimensions (L×W×H mm): 2210×1050×1890 / 3220×1320×2400 / 3300×1420×2530
• Weight: 3000 / 4000 / 5000 kg
• Operation mode: Fully automatic
• Output capacity: 1–20 t/h (customizable)
• Fluid separation: up to 95%
• Components: Siemens and Schneider electrical components
• Certifications: CE, ISO
• Warranty: 1 year machine, 5 years motor
