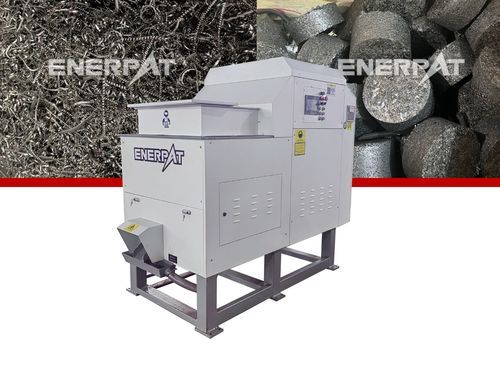

Metal chip briquette press BM-570

chipfor cylindrical briquetteshydraulic

Briquetting system/machine for alluminium chips

ENERPAT BM-570 metal chip briquetter, built on British technology, integrates briquetting and dewatering functions. The machine is designed for continuous non-blocking operation and produces high-density cylindrical briquettes. It increases metal recycling throughput by 10%–30% while complying with environmental regulations. Supplied with original parts and warranties: 1 year for the unit and 5 years for the motor.

Working principle

• Spiral (screw) feeding: dual-action horizontal and vertical screw conveyors provide smooth and even feeding of scrap into the compression chamber.
• Hydraulic compression: hydraulic system drives the cylinder to form cold, high-density cylindrical briquettes.
• Automatic discharge: inclined discharge opening ensures rapid and automatic removal of finished briquettes.

Material testing / Applicable materials

• Alloys
• Iron/steel chips
• Aluminum chips
• Copper chips

Main specifications (summary)
Model: BM-570
Press force: 50 t | Briquette diameter: 70 mm | Briquette thickness: 20–50 mm | Motor: 3 kW | System pressure: 25 MPa | Equipment dimensions: 1300 × 803 × 1657 mm | Equipment weight: 1000 kg | Operation mode: Fully automatic

Key advantages

• Compact modular housing saves floor space and simplifies transport/installation.
• Dual screw feeding mechanism prevents blockages and ensures continuous operation.
• Professional hydraulic system with 10:1 compression ratio and imported components for leak-free reliability.
• Liquid collection tray for clean recovery and reduced costs; recovery rate over 95%.
• PLC control (Siemens/Schneider), touchscreen/buttons and real-time monitoring to improve safety and efficiency.
• Can integrate with upstream shredding for seamless pre-processing of large fractions.

Technical characteristics / specifications

• Model: BM-570
• Brand: ENERPAT
• Press force: 50 t
• Briquette diameter: 70 mm
• Briquette thickness: 20–50 mm
• Motor power: 3 kW
• System pressure: 25 MPa
• Dimensions (L×W×H): 1300 × 803 × 1657 mm
• Equipment weight: 1000 kg
• Operation mode: Fully automatic
• Throughput increase effect: +10%–30%
• Warranty: 1 year for unit, 5 years for motor
• Suitable materials: steel chips, aluminum chips, copper chips, alloys
• Drive/control: Hydraulic system + PLC (Siemens/Schneider)
