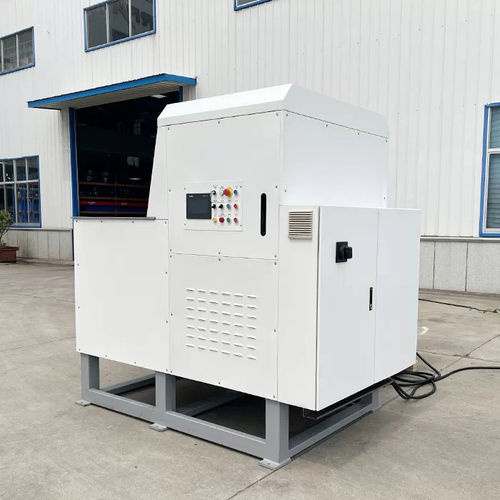

Metal chip briquetting machine BM-D Series

chipfor wastefor cylindrical briquettes

Overview
The BM-D Series efficiently compacts various metal scraps into uniform round briquettes. Operation is automated with selectable hydraulic pressing forces to suit different production requirements. The defining characteristic is a dual-discharge layout that enables pressing and discharge to run simultaneously; left and right outlets alternate to significantly raise throughput. Recycling removes cutting fluids (oils, lubricants and other liquids), improving recovered metal value by 10%–30% and shortening ROI for high-output operations.

Key Features

• Dual-output structure: two discharge outlets alternate to double effective hourly output
• Pressing force options: 100 t, 160 t, 200 t
• ~95% cutting fluid removal
• Integrable with conveyors, crushers and degreasing systems
• 5-year warranty on hydraulic cylinders
• Automatic operation with elevated discharge port for direct bagging

How it works
Materials are fed by a horizontal screw conveyor with a stirring rod to prevent blockage; the spiral feeds material into a pre-pressing chamber. An integral hydraulic cylinder drives the main rod for high-pressure compression into the mold. After pressing, briquettes are automatically pushed out; the higher discharge port enables direct bagging and reduces secondary handling.

Datasheet
Model
BM-D1090 | BM-D1612 | BM-D2013
Pressing Force (t)
100 t | 160 t | 200 t
Briquette Diameter (mm)
90 mm | 120 mm | 130 mm
Main Motor Power (kW)
15 kW | 30 kW | 30 kW
System Pressure (MPa)
25 | 25 | 25
Machine Dimensions (mm / inch)
2920×1380×2150 (115×54×85") | 4250×1740×2730 (167×69×107") | 4360×1870×2880 (172×74×113")
Machine Weight (kg)
3000 kg | 4000 kg | 5000 kg
Operation Mode
Automatic | Automatic | Automatic

Hydraulic and Electrical Systems
Equipped with Baosteel integral hydraulic cylinders to minimize oil leakage and extend service life. Industrial oil coolers regulate oil temperature for continuous 24/7 operation. PLC control (Siemens or Schneider) with touchscreen enables real-time monitoring and straightforward operation. Upgraded motors (15–30 kW) slightly increase consumption while doubling production versus single-output models.

Applications and Output
Suitable for compacting aluminum shavings, steel chips, iron, copper and similar metal wastes into dense briquettes for easier handling, stacking and transport. Example: BM-D1612 can process approximately 500 kg/h of aluminum shavings — about a 100% improvement over single-output units.

Specifications

• Series: BM-D Series
• Available models: BM-D1090, BM-D1612, BM-D2013
• Pressing forces: 100 t / 160 t / 200 t
• Briquette diameters: 90 mm / 120 mm / 130 mm
• Main motor power: 15 kW (BM-D1090), 30 kW (BM-D1612, BM-D2013)
• System pressure: 25 MPa
• Machine dimensions (mm): 2920×1380×2150 • 4250×1740×2730 • 4360×1870×2880
• Machine weights: 3000 kg • 4000 kg • 5000 kg
• Operation mode: Automatic
• Cutting fluid removal efficiency: ~95%
• Hydraulic cylinders warranty: 5 years
• Optional integration: conveyors, crushers, degreasers and custom automated feeding/packaging
