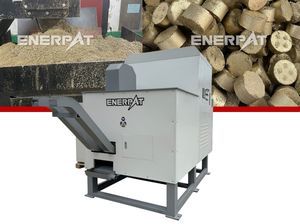

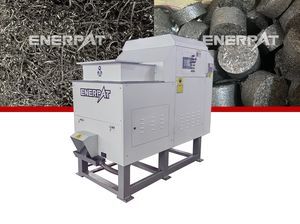

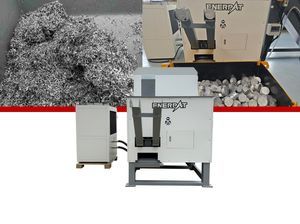

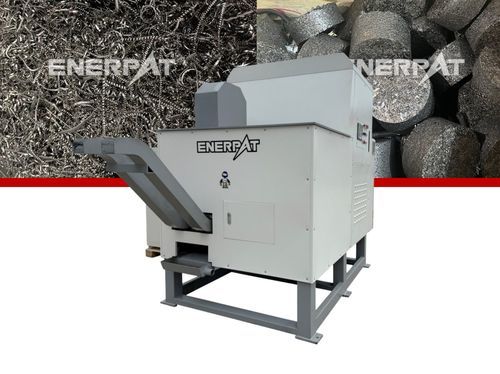

Metal chip briquette press BM-D

chiphydraulicfully-automatic

Double Output Metal Chip Compactor & briquetter

The ENERPAT BM-D Series Double Output Metal Chip Compactor converts metal chips (iron, aluminium, stainless steel, copper, titanium) into solid briquettes while separating cutting fluids with an oil recovery rate up to 95%. The machine produces leak-free briquettes that reduce storage volume, facilitate compliance with environmental inspections and increase recycling value (example increases: $276.19–$514.28 per ton; 2,000–3,000 RMB per ton for iron shavings). Uses original components; CE and ISO certified. Warranty: 1-year unit, 5-year motor.

Applications
The BM-D Series is intended for machinery, automotive, metalworking and recycling operations requiring continuous high-throughput compaction and oil recovery of metal swarf.

Working Principle

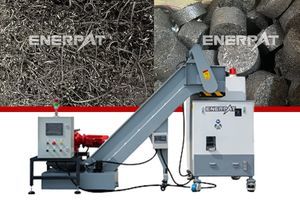

• Conveying and Feeding: Chips are transported to the briquetting inlet using a chip conveyor.
• Dual Auger Feeding: Horizontal and vertical dual-auger system ensures consistent feeding into the compression chamber.
• Hydraulic Compression: Hydraulic system compresses the material into briquettes; electronic controls manage ejection and cycle timing.

Core Advantages / Key Features

• Double-output configuration for continuous high-throughput briquetting.
• Efficient separation and recovery of cutting fluids (up to 95% oil recovery).
• Adjustable briquette size with high-density, wear-resistant mold cavity.
• Durable hydraulic components and extended-warranty hydraulic cylinder.
• PLC control (Siemens/Schneider options) with one-button start, monitoring, alarms and display of operating time/current/temperature.
• Optional industrial cooling for 24/7 multi-shift operation.
• Reduces storage and transport costs and increases resale/recycling value of chips.
• Global service support; optional on-site testing and installation training.

Specification Sheet
Model / Press Force (tons) / Bale Diameter (mm) / Motor (kW) / System Pressure (MPa) / Dimensions (mm) / Weight (kg) / Operation Mode
BM-D1090 / 100 / 90 / 11 / 25 / 2920×1380×2150 / 3000 / Fully Automatic
BM-D1612 / 160 / 120 / 18.5 / 25 / 4250×1740×2730 / 4000 / Fully Automatic
BM-D2013 / 200 / 130 / 22 / 25 / 4360×1870×2880 / 5000 / Fully Automatic

Additional Product Details

• Series / Models: BM-D (examples: BM-D1090, BM-D1612, BM-D2013)
• Brand: ENERPAT
• Processed materials: iron, aluminium, stainless steel, copper, titanium chips/shavings
• Typical integration: chip conveyor with vertical + horizontal auger feeding

Technical Specifications

• Press Force: 100 / 160 / 200 tons (by model)
• Bale Diameter: 90 / 120 / 130 mm (by model)
• Motor Power: 11 kW / 18.5 kW / 22 kW (by model)
• System Pressure: 25 MPa
• Dimensions (L×W×H mm): 2920×1380×2150 ; 4250×1740×2730 ; 4360×1870×2880
• Machine Weight: approx. 3000 / 4000 / 5000 kg (by model)
• Operation Mode: Fully Automatic
• Oil recovery rate: up to 95%
• Certifications: CE, ISO
• Warranty: 1 year for unit, 5 years for motor
