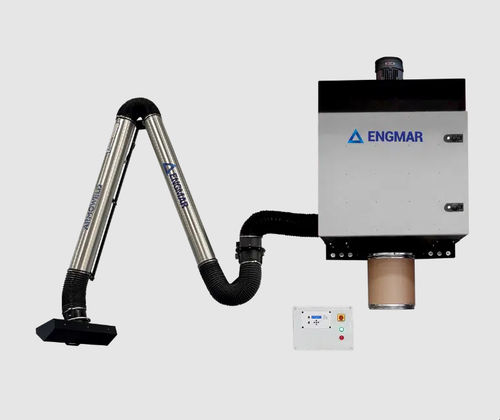

Wall-mounted fume extractor UNIWELD F2
weldingsolderinglaser

Wall-mounted fume extractor - UNIWELD F2 - Engmar - welding / soldering / laser
Wall-mounted fume extractor - UNIWELD F2 - Engmar - welding / soldering / laser
Add to favorites
Compare this product
Go to the Engmar website for more information

Characteristics

Mobility
wall-mounted
Applications
welding, laser, soldering, laser marking, cutting
Filter type
activated carbon filter, cartridge, with self-cleaning filter
Other characteristics
with multiple extraction arms, compact, automatic, with ventilator, with jet pulse cleaning
Airflow

5,400 m³/h
(190,699 ft³/h)

Power

2.2 kW
(2.99 hp)

Voltage

400 V

Width

860 mm
(33.86 in)

Total length

718 mm
(28 in)

Depth

953 mm
(37.52 in)

Noise level

73 dB

Description

Capture and filter effectively welding fumes with our compact and high-performance extraction units. F2 Wall mounted Extraction units UNIWELD Wall-mounted extraction unit for one or two extraction arms With automatic cleaning Filtration of over 99% of particles Industrial use Suitable for high concentrations of pollutants The UNIWELD extraction units are available in two versions: a mobile version, easy to move around the workshop, and a wall-mounted version for a fixed, space-saving installation. Depending on the model, one or two extraction arms can be connected to adapt to the layout and specific needs of each workstation.

Catalogs

Catalog 2025
Catalog 2025
119 Pages
