Mobile extraction arm ARMOWELD
bench-topwall-mountedflexible

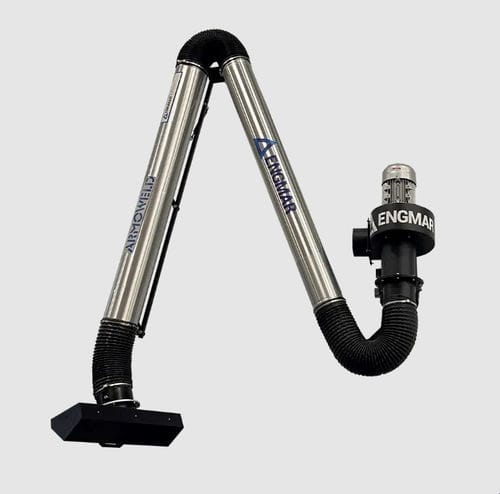

Mobile extraction arm - ARMOWELD - Engmar - bench-top / wall-mounted / flexible
Mobile extraction arm - ARMOWELD - Engmar - bench-top / wall-mounted / flexible
Mobile extraction arm - ARMOWELD - Engmar - bench-top / wall-mounted / flexible - image - 2
Mobile extraction arm - ARMOWELD - Engmar - bench-top / wall-mounted / flexible - image - 3
Mobile extraction arm - ARMOWELD - Engmar - bench-top / wall-mounted / flexible - image - 4
Mobile extraction arm - ARMOWELD - Engmar - bench-top / wall-mounted / flexible - image - 5
Add to favorites
Compare this product
Go to the Engmar website for more information

Characteristics

Mobility
wall-mounted, bench-top, mobile
Type
flexible, articulated, telescopic, double
Applications
dust, suction, welding fume, for soldering fumes, for welding fume extractors, for gas, for chemicals, for solder fume extractors, high-temperature
Other characteristics
with hood, with external support arm, with extension
Domain
for the automotive industry, for industrial applications, for the chemical industry, for construction, petrochemical, for trucks, for recycling, for the pharmaceutical industry, safety, for training, fast, for the plastics industry, for metalworking, for the transportation industry, for electronics, for the food industry, for welding applications, for shipbuilding, for the electronics industry, for installation, for the construction industry, for the aeronautical industry, for laser applications, for the aerospace industry
Length

Min.: 2 m
(6'06" )

Max.: 8 m
(26'02" )

Diameter

Min.: 125 mm
(4.92 in)

Max.: 160 mm
(6.3 in)

Description

Overview
The ARMOWELD articulated arm and REVOLFLOW slit nozzle ensemble are particularly efficient, manoeuvrable, and
comply with current CARSAT recommendations. The articulation of the ARMOWELD extraction arm provides superior
capture flow and longevity compared to arms with internal articulations. The slit nozzle at the end of the arm enlarges the
action field of the extraction flow. It allows a farer positioning from the welding fumes emission point and thus reduces
the operator’s need for arm manipulation. Multiple formats are available.

Benefits
  • 360° rotation with adjustable laminar slit nozzle via a flexible connector for precise positioning
  • Extraction positioned opposite the breathing zone to improve operator protection
  • Reinforced external monobloc structure for stability and long service life
  • Extended reach up to 8 meters, suitable for covering large work areas

Standards Compliance
  • 2006/42/EC
  • ISO EN 614-1+A1

Recommended industries
  • Metal machining and forming
  • Industrial piping
  • Sheet metal fabrication and welding
  • Locksmithing and metalworking
  • Defense
  • Public works and construction
  • Transportation
  • Chemical

Technical specifications
  • Series: ARMOWELD
  • Articulation: external joints / external monobloc structure
  • Rotation: 360° rotation for comfortable and precise adjustment
  • Nozzle: adjustable laminar slit nozzle, compatible with REVOLFLOW (selectable slit options)
  • Reach: available in several lengths; maximum reach up to 8 meters (with extensions)
  • Materials: steel and anodized alloy
  • Installation: supplied with wall mount; easy connection to extraction duct or fan unit
  • Performance: increased airflow vs internal-joint models; optimized capture area and effective extraction at a distance
  • Maintenance: external joints for easier maintenance
  • Standards: 2006/42/EC; NF EN 614-1+A1
