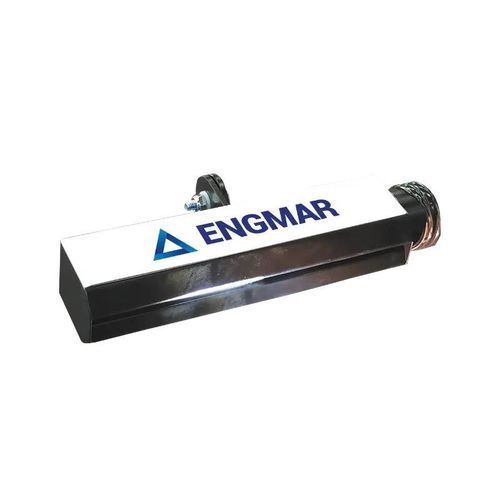

Suction extraction slit nozzle CHD

welding fumewith horizontal orientationfor high vacuum

Overview
Efficiently capture welding fumes at the source while maintaining optimal visibility of your workpiece.

Key uses

• Can be used for TIG, MIG, or MMA (shielded electrode) welding fumes
• Can be integrated into certain welding cells

Main features

• Laminar slit nozzle usable as a substitute for an extraction torch
• Operates with a high-vacuum extraction unit as an alternative to a fume extraction torch
• Easy integration on any support thanks to a flexible connection
• Efficient capture across the entire width of the hood
• No obstruction above the work area for maximum visibility

Mounting & versions
Available with a magnetic base for quick and secure mounting; also available in a version with an articulated arm for easy and precise positioning to optimise fume capture.

Standards Compliance

• 2006/42/EC
• 2014/30/UE

Additional information
ENGMAR CHD slit nozzles are designed to make the most of high-vacuum extraction units or central extraction systems to efficiently eliminate fumes generated by MIG, TIG, or electrode welding. They enable efficient capture of pollutants at the source by creating an extraction flow directed away from the operators’ breathing zones.

Characteristics / Technical specifications

• Product type: Laminar slit nozzle (CHD)
• Compatible welding processes: TIG, MIG, MMA (shielded electrode)
• Intended connection: Flexible connection for easy integration on supports
• Operation: High-vacuum extraction unit or central extraction systems (alternative to extraction torch)
• Mounting options: Magnetic base; articulated arm version available
• Capture area: Efficient capture across entire width of the hood; designed to avoid obstruction above work area
• Standards: 2006/42/EC, 2014/30/UE
• Documentation: Product sheet available (English)
