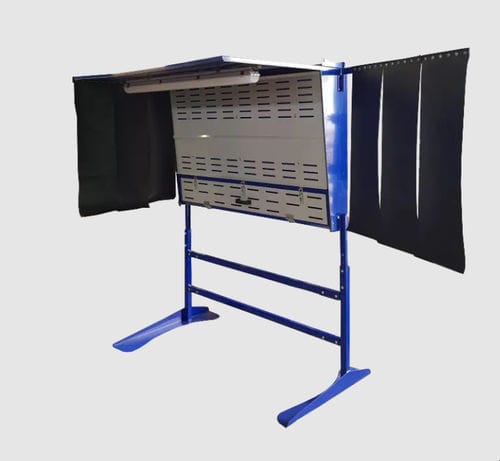

Welding booth BLH

suction

Overview
The BLH laminar extraction wall partitions the welding or emission area and captures fumes and dust at source using a horizontal extraction slit, preventing dispersion into ambient air and protecting operators.

Product summary
BLH extraction walls (hoods) provide a flexible solution for capturing welding fumes and dust. They can be integrated with existing worktables or positioned directly on the floor for large workpieces. Swiveling side panels allow handling of parts wider than the structure while keeping a consistent extraction flow across the work area. Options include mounting on a height-adjustable frame for improved ergonomics.

Benefits

• Efficient capture of welding fumes and dust at source via horizontal laminar extraction
• Swiveling side panels to facilitate loading and working on large or wide parts
• Inspection hatch for maintenance and removal of heavy dust
• Encloses emission zone to limit dilution into ambient air
• Configurable to different workshop layouts and workbench setups

Features (from product cards)

• Model family: BLH
• Extraction principle: horizontal laminar slit nozzle extracting from the back of the workstation
• Side panels: swiveling/pivoting side panels for oversized parts
• Maintenance: inspection hatch for access and heavy dust removal
• Installation: integrable with existing tables or usable directly on the floor for large workpieces
• Optional: chassis with height-adjustable supports for ergonomic positioning

Recommended industries

• Metal machining and forming
• Industrial piping and process piping
• Sheet metal fabrication and welding
• Locksmithing and metalworking workshops
• Defense and heavy industry

Services & compliance

• Periodic inspection and maintenance services available (annual checks recommended)
• Designed to support compliance with local extraction and occupational safety regulations (e.g. applicable national standards; TRGS 528 listed where relevant)
• Can be integrated with central extraction systems and ventilation for controlled airflows

Technical specifications

• Primary function: capture and prevent dispersion of welding fumes and dust to protect operators
• Model family: BLH
• Extraction type: horizontal laminar extraction (slit nozzle at rear of workstation)
• Side panels: swiveling to allow processing of wider parts
• Maintenance: inspection hatch for cleaning and removal of heavy particles
• Installation: bench-integrable or floor-mounted for large pieces
• Adaptability: configurable dimensions and optional height-adjustable chassis
