MIG-MAG welding torch COBOFLOW

water-cooledroboticwith fume extraction

Overview

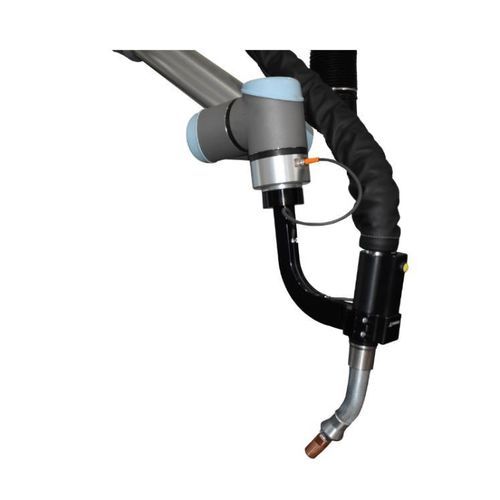

The COBOFLOW extraction torch and dedicated ergonomic holder are designed for cobotic MIG/MAG welding. The system captures welding fumes directly at the source while allowing manual guidance of the cobot arm via a freedrive button, combining operator protection with consistent weld performance.

Benefits

• Source extraction reduces operator exposure to welding fumes
• Precise and stable TCP (Tool Center Point) positioning
• Quick consumable removal and fast tool changes
• Ergonomic holder with freedrive for manual guidance and easy handling

Standards compliance

• EN 21904-1
• EN ISO 21904-4
• EN 60974

Key features and application notes
The COBOFLOW solution pairs a water-cooled MIG/MAG extraction torch with an ergonomic holder featuring a freedrive button for manual guidance of the cobot arm. Direct source extraction captures fumes at emission, improving workshop air quality and protecting personnel. The holder assists precise TCP positioning and enables rapid tool changes, making the system suitable for small-series production and complex welds in industrial workshops.

380 MIG-MAG COBOFLOW torches

• Cooling: Water-cooled
• Power: 340 A (gas mixture) / 400 A (CO2)
• Duty cycle: 100%
• Wire diameter: 1.2 – 1.6 mm
• Available angle: 30°

400 MIG-MAG COBOFLOW torches

• Cooling: Water-cooled
• Power: 440 A (gas mixture) / 500 A (CO2)
• Duty cycle: 100%
• Wire diameter: 1.2 – 1.6 mm
• Available angle: 30°

Additional information
The range supports integration with mobile extraction units, central fume extraction systems and particle/gas filtration. The design focuses on production cycle optimization and sustained weld quality under continuous operation.

Technical specifications

• Marque: ENGMAR
• Model / range: COBOFLOW
• Type: Water-cooled MIG/MAG extraction torch for cobots with dedicated ergonomic holder
• Cooling: Water-cooled
• Rated power (examples): 340 A (gas mix) / 400 A (CO2) for 380; 440 A (gas mix) / 500 A (CO2) for 400
• Duty cycle: 100%
• Wire diameter compatibility: 1.2 – 1.6 mm
• Available angle: 30°
• Holder features: ergonomic design, freedrive button, quick consumable removal
• Function: Direct source fume extraction to protect operators and maintain weld quality
• Standards: EN 21904-1, EN ISO 21904-4, EN 60974
