Grinding process downdraft table ENTAF

for weldingbackpanel

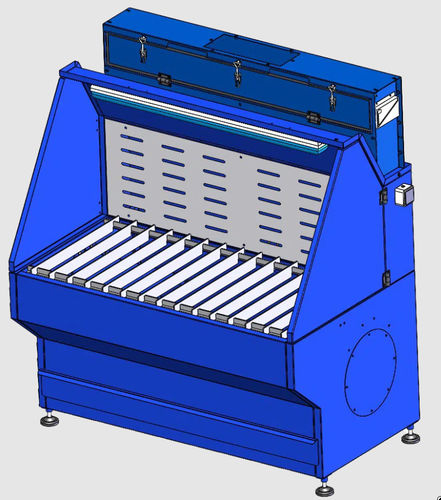

ENTAF Extraction table: Extraction table for grinding and welding with backdraft extraction panel, pivoting flaps, luminaire, grating, and integrated filtration box

The ENTA extraction tables, compact and high-performing, capture welding fumes as well as metal particles generated by cutting and grinding directly at the workstation. Designed for extraction as close as possible to the emission source, they ensure an extraction velocity exceeding 0.5 m/s for grinding and 0.7 m/s for cutting, in accordance with INRS and Carsat recommendations.

ENTA tables can operate autonomously or be connected to a central extraction system. Their adjustable height optimizes operator comfort, while the large, slide-mounted collection drawer makes maintenance easier and reduces the frequency of maintenance cycle.

Various models and sizes are available to suit all workshop configurations.

Benefits:

• Extraction table for grinding and welding with backdraft extraction panel
• Pivoting flaps
• Luminaire
• Grating, and integrated filtration box

Standards Compliance:
2006/42/EC
NF EN 614-1+A1
