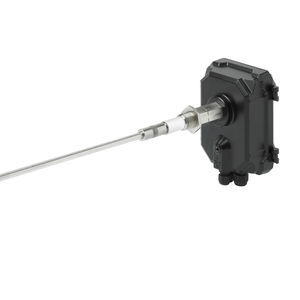

PARTICLE SIZE MONITORING
Paddy has been developed to supply a trending information of pulverization. It measures changes in particle size for instance to detect screen breaks. Paddy is insensitive against contaminations and works without a bypass.
FEATURES & BENEFITS
- Supply a trending information of pulverization
- Measures changes in particle size for instance to detect screen breaks
- Paddy is insensitive against contaminations and works without bypass
- Uses state-of-the-art microwave technology in combination with intelligent evaluation software
- Can be installed in free-fall pipes downstream from screening or grinding systems
- Fast detection of coarse particles, for as little as 10 % of the mass flow
PAIN APPLICATIONS
•Cement
•Food
•Wood
TECHNICAL SPECIFICATIONS
Material to measure Dust, powders or granulates, not agglomerated
Process pressure 1 bar, optional 10 bar
Process temperature Max. 80°C
Mounting Via process connection, after baffle plate or Venturi
Type of Conveying Pneumatic leanphase, vertical freefall
ATEX rating Category 1/2
Output 4…20mA Trend, Modbus, Profibus
TECHNICAL DATA
•Fast detection of coarse particles, for as little as 10 % of the mass flow
•Uses state-of-the-art microwave technology in combination with intelligent evaluation software
•Can be installed in free-fall pipes downstream from screening or grinding systems
•Possibility of trend showing for grain size
•Special freefall section include baffle plates needed
•Consists of two sensors (measurement and reference)
