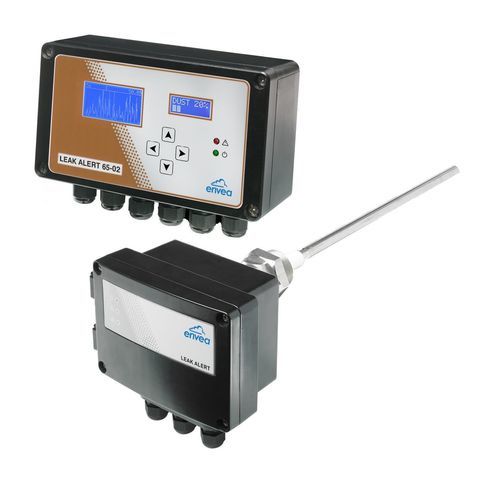

Dust detector LEAK ALERT 65-02

electro-dynamicprobefor filter monitoring

Controller based filter dust leak monitor (0-100%) for filter emissions monitoring after bag houses, cartridge filters, cyclones etc. where performance approvals are not required

The LEAK ALERT 65-02 is particularly suited for use on fabric filter type dust collectors (baghouses). It provides reliable and robust monitoring of particulate dust levels and leaks from faulty bag media. The sensor, installed after the bagfilter, conditions, amplifies and analyses the dust signal and communicates a secure digital signal to the remotely located control unit, where instrument set-up, configuration, local display and 4-20 mA output signals functionality are provided.

FEATURES & BENEFITS
• - Reliable monitoring of leaking and broken bags in dust collectors
• - Sensor configured remotely via controller
• - Manual sensor Drift Checks (zero and span)
• - Probe Check (Insulator Short-Circuit Check) option for improved data integrity
• - Digital display and optional graphical display to view live data and monitor bag cleaning cycle
• - Reduces filter maintenance intervals, process down-time and filter costs

MAIN APPLICATIONS
• - Stacks after bag filters, cartridge filters, cyclones
• - Variable velocities within range 4-30m/s (typical bag filter velocity ranges), constant velocity required outside this range
Typical Applications:
• - Incineraton
• - Metals (eg Steel/Aluminium)
• - Minerals (eg Cement/Gypsum)
• - Chemicals (eg Detergent / Ti02)
• - Food (eg Milk Powder / Tobacco)
• - Power (eg Boilers/Biomass)
