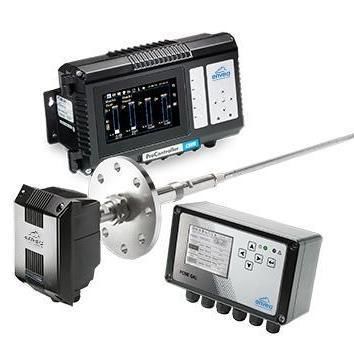

Particle monitoring system QAL 991

dust concentration and opacityemissionsdust

ELECTRODYNAMIC® APPROVED PARTICULATE CEM QAL1 approved particulate CEM providing high quality emission measurement for low dust concentrations from dry industrial processes including Baghouses and Cartridge Filters FEATURES & BENEFITS - Robust design unaffected by product build-up on the sensor rod - No additional services such as air purge required, providing lower cost of ownership - Simple maintenance no requirement for specialist service personnel - Complies with standards EN 13284-2, EN 14181 and EN 15267-3 and applications with Emission Limit Values (ELVs) of 7.5 mg/m³ (Incineration) and 15 mg/m³ (co-incineration) - Automatic recording of drift checks (zero and span) to satisfy QAL3 requirements - Networking up to 16 sensor channels via Modbus and providing multiple inputs for external devices such as temperature, pressure and 02 normalisation MAIN APPLICATIONS - Stacks after bag filters, cartridge filters, cyclones, electrostatic precipitators, no filtration - Variable velocities within range 5 – 25 m/s (typical bag filter velocity ranges) - Non-condensing / dry flue gases Typical Applications: - Incineration - Metals (eg Steel/Aluminium) - Minerals (eg Cement/Gypsum) - Chemicals (eg Detergent/Carbon Black) -Power Generation Plant (eg Coal/Biomass)
