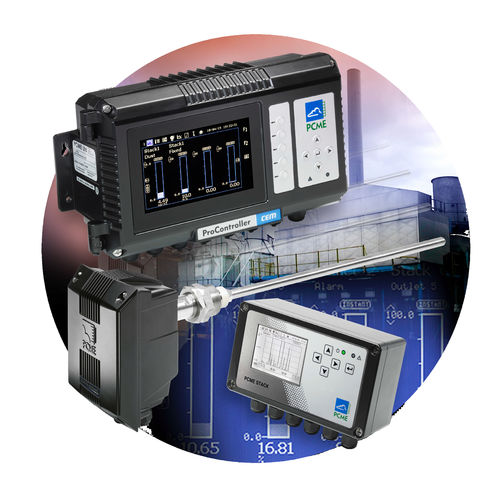

Concentration monitoring system STACK 990

dust concentration and opacityparticleairborne particle

ELECTRODYNAMIC® APPROVED PARTICULATE CEM QAL1 TÜV approved particulate monitor providing high quality emission measurement for low dust concentrations from dry industrial processes including Baghouses and Cartridge Filters FEATURES & BENEFITS - Robust design unaffected by product build-up on the sensor rod - No additional services such as air purge required, providing lower cost of ownership - Simple maintenance no requirement for specialist service personnel - Networking up to 16 sensor channels via Modbus and providing multiple inputs and outputs for external connections - Extensively used for measurement (mg/m³) and leak location in bag filter stack applications - Advanced sensor design includes drift checks (zero and span) and contamination checks - Passive/Active and fully insulated sensor options available for applications with stack condensation and damp particulate prevents potential short circuit to stack wall MAIN APPLICATIONS - Stacks after bag filters, cartridge filters, cyclones, electrostatic precipitators, no filtration - After process dryers - Variable velocities within range 8 – 20 m/s (typical bag filter velocity ranges), constant velocity required outside this range - Non-condensing / dry flue gases Typical Applications: - Incineration - Metals (eg Steel/Aluminium) - Minerals (eg Cement/Gypsum) - Chemicals (eg Detergent / Carbon Black) - Power Generation Plant (eg Coal/Biomass)
