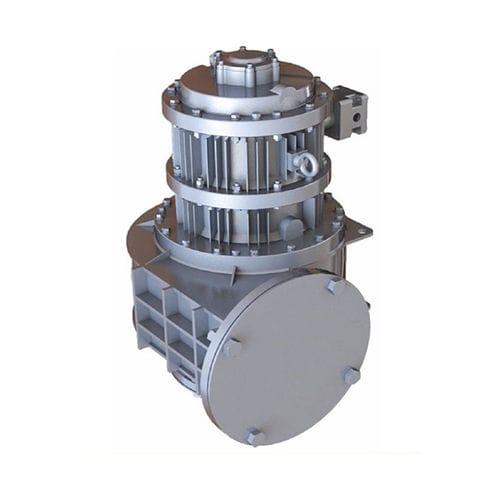

Water pump SF6 electricimpellerstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- impeller
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- outlet
- Voltage
- 380 V
- Other characteristics
- axial, radial, flow
- Flow
28 m³/min
(988.81067 ft³/min)- Pressure
2,100 Pa
(0.305 psi)- Power
3 kW
(4.08 hp)
Description
The SF6 gas pump mainly consists of pump shell, main shaft, impeller, motor and transmission, such as bearing. In detail, the motor shaft connects to the impeller directly with bearings on both ends. The gas flows into impeller with axial direction after the rotation of impeller and changes to radial direction. Then the gas flows into the volute with direction change and deceleration due to the increased cross section area of the volute. This deceleration converts kinetic energy into pressure energy, making gas SF6 flows out from the fan outlet and continuously circulates to cool the transformer.
Advantages
1.Environment friendly;
2.Safe;
3.Low noise;
4.High volume flow rate;
5.No leakage.
Application
The product is applied to SF6 gas transformer.
