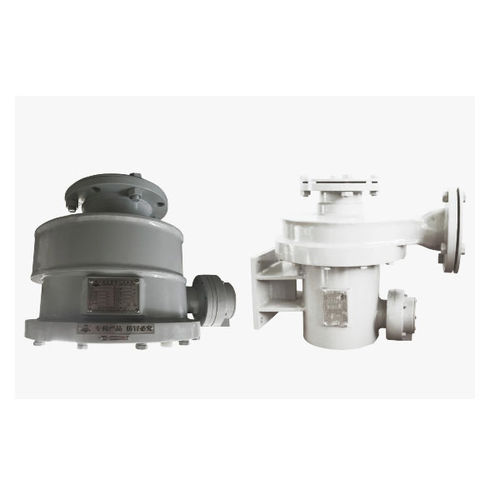

Water pump 6BP serieselectricdiscstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- disc
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- cooling, distribution
- Voltage
- 380 V
- Other characteristics
- compact, small, axial, large
- Flow
Min.: 12 m³/h
(423.776 ft³/h)Max.: 60 m³/h
(2,118.88 ft³/h)- Power
Min.: 0.75 kW
(1.02 hp)Max.: 4 kW
(5.44 hp)
Description
It is mainly composed of pump body, impeller, bearing, base and motor. In detail, the motor is disc type, the rotor and stator are installed as an upper and lower structure, the rotor and impeller are designed as a whole, and the pump is sealed with base via O ring. Therefore, this type of pump has the characteristics of large starting torque, small axial size and compact structure.
Advantage
1.Compact structure;
2.Small vibration;
3.Low noise;
4.Long life cycle;
Application
Mainly used in the oil-forced type of transformer cooling system of power transformer, UHV distribution transformer, electric arc furnace transformer, electric locomotive transformer and other special transformer.
