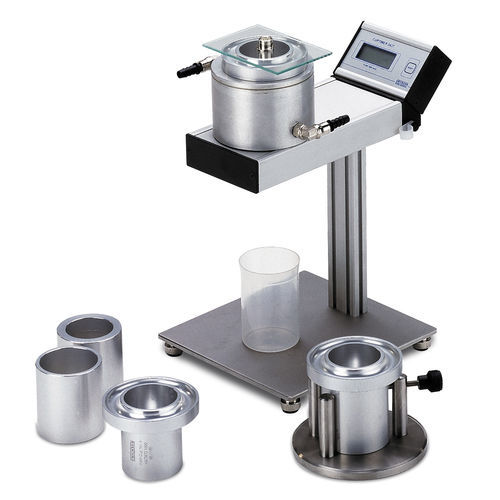

Flow measuring instrument CUPTIMER 243

opticalelectroniclaboratory

The opto-electronic measuring instrument CUPTIMER 243 USB offers a number of advantages to the user:

• Automatic measuring sequence with optical detection of the stream of sample.
• Flow times up to 1000 s can be read off from the LC display with a resolution up to 0.01 s.
• Equally suitable for all liquids (transparent calibration oils and opaque lacquers).
• Practical temperature adjustment: Temperature jacket removable from the basic unit; with adaptors for different shapes of flow cups.
• Easy to handle: One-button-operation.
• Designed as a mobile measuring station: sturdy, compact stand construction mounted on an adjustable base; plug-type tube connections; operated via plug-in supply unit.
• USB interface for storing the flow times on PC
• Power supply by USB interface, by choice also with plug-in supply unit

Reference Class
The CUPTIMER 243 USB is supplied with a Manufacturer’s Certificate M in accordance with DIN 55 350-18 that includes among others the following information:

• Result of the function test
• Accuracy of the time measuring device
• Product identification
• Test equipments used with calibration status
• Date
• Name of inspector

Start and stop function are checked by transparent and opaque material. The accuracy of the time measuring device is determined by means of a digital radio controlled clock.
