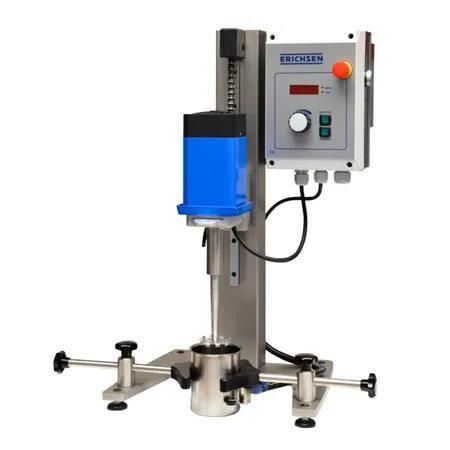

Rotary laboratory stirrer DISSOLVER 492 I

digitalfor viscous productsfor liquids

Product overview
The DISSOLVER 492 I is a precision laboratory high-speed stirrer for dispersing and mixing small volumes (approx. 0.1–3 L) in formulations such as paints, coatings and inks.

Design and safety

• Low-noise drive with continuously adjustable speed controlled by PID electronics to maintain constant speed during viscosity changes.
• Stainless-steel stand and column with a tared counterweight sliding inside the column for easy vertical adjustment and immersion control.
• Quick fixing device at the stand base with a safety switch that cuts motor power if vessel clamping is insufficient.
• Adjustable safety switch on the column to limit maximum stirring height; power is interrupted if the motor/stirring unit is lifted above the active range.
• One interchangeable dispersing disc (Ø 40 mm) included.

Operating guidance
The recommended peripheral (tip) speed of the dispersing disc is 18–22 m/s. Shaft and tip speeds are shown on the digital display. After premixing, increase shaft speed until product clears the vessel wall and a doughnut-flow pattern appears at the disc top.

Control and display

• Digital speed display
• Digital time indication
• Integrated timer adjustable from 1 to 100 minutes with countdown
• Automatic stop
• Speed control starting from zero
• Illuminated on/off switch

Application fields

• Paints and lacquers
• Floor and industrial coatings
• Ceramics and colorants
• Automotive and aerospace coatings
• Inks and printing formulations
• Sealants, adhesives and putties
• PVC liquids and resins
• Decorative coatings, textiles and additives
• Plasters, stucco and wall paints

Scope of delivery

• Laboratory High Speed Stirrer DISSOLVER 492 I
• Complete stand
• Quick fixing device
• Replaceable dispersing disc (Ø 40 mm)

Technical specifications

• Order number: 04920151
• Drive: Electric
• Power: 0.3 kW (0.4 HP)
• Speed: 0 - 10,000 rpm (stepless)
• Torque: 0.5 Nm
• Weight: net approx. 26 kg
• Vessel size: 0.1 - 3 L (recommended operational range)
• Power supply: 230 V, 50/60 Hz, single-phase
• Dispersing disc: up to 40 mm (one Ø 40 mm disc included)
