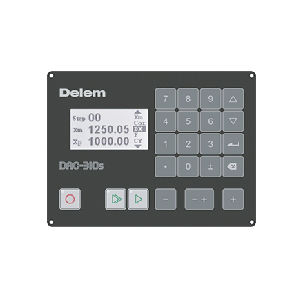

Shearing machine CNC controller DAC310S

compact

I High-definition LCD screen displays 275*48 pixels I Backgauge control I Shear edge gap control I Shear stroke control I Display the actual position of backgauge and the programmed position value simultaneously I Shearing no counting I 100 programming lines I Installation as panel • Servo control/variable frequency speed control/two-speed AC motor control The DAC310S shearing machine CNC device uses the latest electronic technology and has the characteristics of compact structure and complété fonctions. It provides a unique solution for the backgauge, knife edge gap and shearing stroke control of the shearing machine. I Backgauge axis control supports servo motor control, two-speed AC motor control and frequency conversion speed control. I Depending on the application, the backgauge can be positioned bidiredionally or unidirectionally to eliminate lead screw clearance. I The backgauge reference point can be set as finding the backgauge position automatically when the machine is turned on or to remember the backgauge position when the power is turned off. I Manually move the backgauge supports two speeds by selecting the move button I High-definition LCD display provides clear, fast and simple programming. The actual position value and programmed value of the backgauge are displayed at the same time, and the optional fonction of program counting can also be displayed at the same time. Each program step provides settings such as work step link, material retract distance, repeat count, etc.
