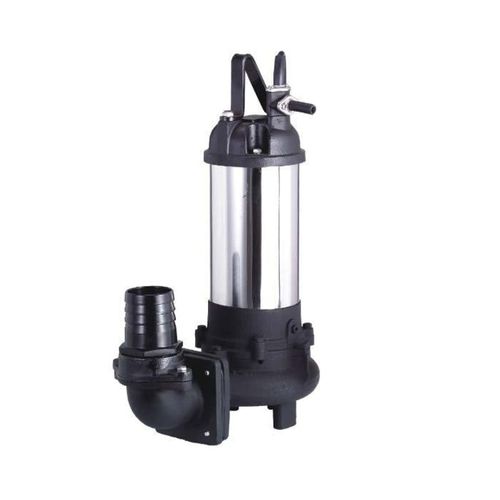

Water pump SAEwith electric motorsubmersiblevortex
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- submersible
- Technology
- vortex
- Domain
- industrial, for the chemical industry, for the food and beverage industry, for wastewater treatment, for offshore applications, for marine applications
- Applications
- firefighting, sewage, irrigation, drainage
- Material
- stainless steel, cast iron
- Other characteristics
- seal, OEM, flange, ball bearing, thermal protection
- Flow
Max.: 66 m³/h
(2,330.768 ft³/h)Min.: 7.8 m³/h
(275.4544 ft³/h)- Pressure
2.7 bar
(39.16 psi)- Head
Max.: 27 m
(88'06" )Min.: 3 m
(9'10" )
Description
Sewage/Drainage, Submersible Pumps
Submersible Agitator Sewage pump specifically designed for uses in narrow pit. Submersible with cast iron body, SS304 motor casing, vortex impeller. Stainless steel shaft , double mech seal & one oil seal. Continuous duty submersible induction motor, in a watertight casing . Rotor mounted on double-shielded ball bearing. Thermal protection in the winding, to be connected to the panel.
Details
FlangeThread flange or Elbow type
Materials Cast Iron
MountingMonobloc
Specifications
DN2" - 4"
Q7.8 - 66m³/h
O.P2.7 bars
H3 - 27m
Ns2900 rpm - 50Hz
3600 rpm - 60 Hz
t0°C - 40°C
Applications
Waste water for domestic and civil purpose
