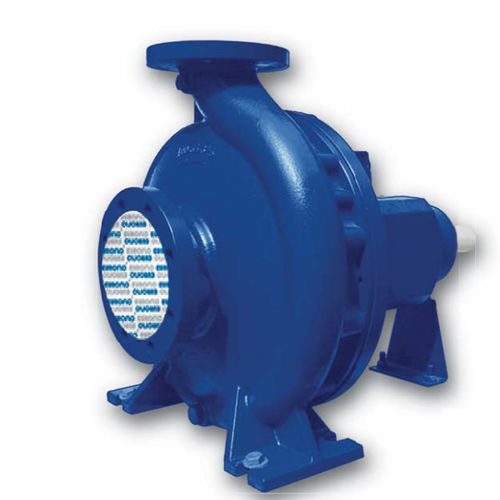

Water pump EISO
for chemicalsoilwith electric motor

water pump
water pump
Add to favorites
Compare this product


Characteristics

Media
water, for chemicals, oil
Operation
with electric motor
Technology
centrifugal with volute
Domain
industrial, for wastewater treatment, for oil industry applications
Applications
cooling, chemical process
Material
metal, cast iron
Other characteristics
horizontal mount, single-stage, with mechanical seals, suction, with closed impeller, heating, with seal
Flow

Min.: 3 m³/h (105.944 ft³/h)

Max.: 1,200 m³/h (42,377.6001 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 16 bar (232.06 psi)

Head

Min.: 25 m (82'00")

Max.: 150 m (492'01")

Description

Single Stage, End Suction, Chemical Process/Oil & Gas, Surface Pumps EISO pumps are Horizontal End Suction, single stage volute casing and designed to ISO 2858/5199. Its ‘back pull out’ design allows for maintenances without removing the piping and pumps alignments. Pumps can be fitted with single or double mechanical seal with seal support system according to API or ANSI seal plan. Cooling or heating jacket are available upon request. Details FlangeANSI B16.5B (optional), PN25 or #300 RF, PN 16(Std) Materials Cast Iron, Ductile Iron, Cast Steel, Stainless Steel MountingHorizontal closed impeller Specifications DN25 - 250mm Q3 to 1200m³/hr O.Pup to 16bar H25 - 150m Ns1450 - 2950rpm (50hZ), 1750 - 3550rpm (60hZ) t-45ºC to 350ºC Applications Petrochemical & Chemical Industry Pulp & Paper Industry Fertilizer Industry Food Processing Metal & Steel Industry Waste Water Treatment
