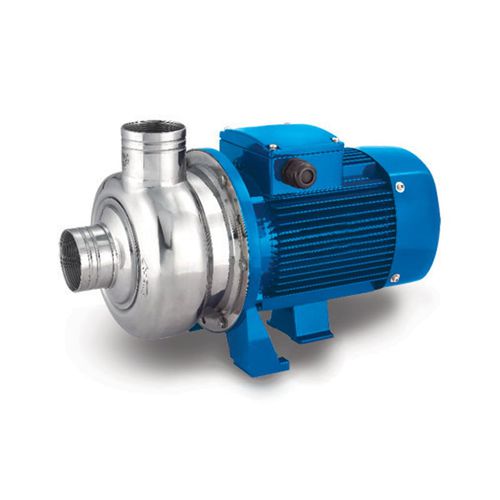

Water pump EK series
with electric motorcentrifugalindustrial

water pump
water pump
Add to favorites
Compare this product


Characteristics

Media
water
Operation
with electric motor
Technology
centrifugal
Domain
industrial, for the food and beverage industry, for the pharmaceutical industry
Applications
washing, for transfer
Material
stainless steel
Other characteristics
suction, close-coupled, with open impeller
Flow

Max.: 66 m³/h (2,330.768 ft³/h)

Min.: 6 m³/h (211.888 ft³/h)

Pressure

8 bar (116.03 psi)

Head

Max.: 17.5 m (57'04")

Min.: 7 m (22'11")

Description

Horizontal, Single Stage, End Suction, Monobloc, Surface Pumps The Euroflo EK series are non-self-priming centrifugal pumps with semi-open impeller. The pump wetted parts are of stainless steel (SUS 304 or SUS 316 ) construction and are particularly suitable for transfer of liquid with suspended solid size up to 14mm ( spherical ). The closed coupled / Back Pull Out design saved space and ensures flexibility of installation without moving the pump body from the piping system. Details FlangeG thread Materials SS 304, SS 316L MountingMonobloc Specifications DN1 1/2" to 2 1/2" Q6 to 66m³/h O.P8 bar H7 to 17.5m Ns2900rpm- 50Hz (60Hz on request) t-15°C - +80°C Applications Food Industries Pharmaceutical Brewery & Beverage processing Part washing Industrial Washing Machines Bottle Washing
