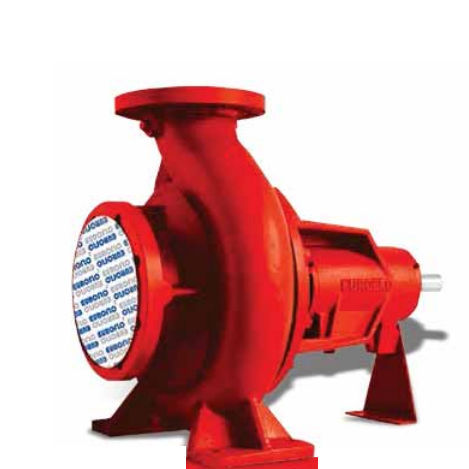

Impeller pump EUF serieswaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial, for water treatment
- Applications
- suction
- Material
- cast iron
- Other characteristics
- flange
- Flow
Min.: 55 m³/h
(1,942.30667 ft³/h)Max.: 672 m³/h
(23,731.45604 ft³/h)- Pressure
16 bar, 40 bar
(232.06 psi, 580.151 psi)- Head
290 m
(951'05" )- Power
Min.: 5.4 kW
(7.34 hp)Max.: 268 kW
(364.38 hp)- Weight
Min.: 35 kg
(77.16 lb)Max.: 297 kg
(654.77 lb)
Description
Horizontal End Suction Pumps
EUF Series: Design in accordance with DIN EN733/DIN24255/6.
EUFS Series: Design accordance with ISO 2858/5199
Fire Code Compliances:
AS 2941-2008 (Australian standard)
CP 52 (Singapore Productivity and Standards Board)
NFPA20
Materials : Cast Iron, Ductile Iron, Cast Steel
Flange : PN 16, PN 25, PN 40
