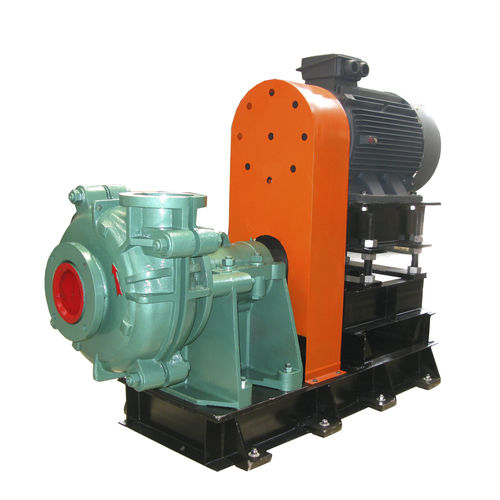

Impeller pump EHM-4 seriesslurrywith electric motornormal priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- slurry
- Operation
- with electric motor
- Priming
- normal priming
- Domain
- for wastewater treatment, for the mining industry
- Applications
- for marine dredging, for harsh environments, for desulfurization, for harsh environments
- Protection level
- chemical-resistant, abrasion-resistant
- Other characteristics
- high-efficiency, high-performance, belt-driven
- Flow
Max.: 360 m³/h
(12,713.28002 ft³/h)Min.: 162 m³/h
(5,720.97601 ft³/h)- Head
Max.: 56 m
(183'08" )Min.: 12 m
(39'04" )- Power
Max.: 120 kW
(163.15 hp)Min.: 0 kW
(0 hp)
Description
The EHM Series slurry pump is designed for tough corrosive, high and minimal density slurries. This device is suitable for high head slurries in the metallurgical, mining, coal, power, building material and other industrial applications. The head of EHM-4D is built ranges from 12 to 65 m. It can work with a capability from 162 to 360 cubic meter per hour. The features of this kind of slurry pump in which the frame plates have removable wear-resistant metal liners. The impellers are built of wear-resistant metal. The frame plate liner and impeller for EHM slurry pump may adopt of solid metal. The Bearing assembly utilizes cylindrical construction, adjusting the space between impeller and front liner easily, being rid fully when being mended.
VIDEO
Catalogs
No catalogs are available for this product.
See all of Excellence Pump Industry Co.,Ltd.‘s catalogsOther Excellence Pump Industry Co.,Ltd. products
EHM slurry pump
