Hydraulic cylinder SQUARE 1® series

hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


hydraulic, pneumatic
aluminum, stainless steel

6 in

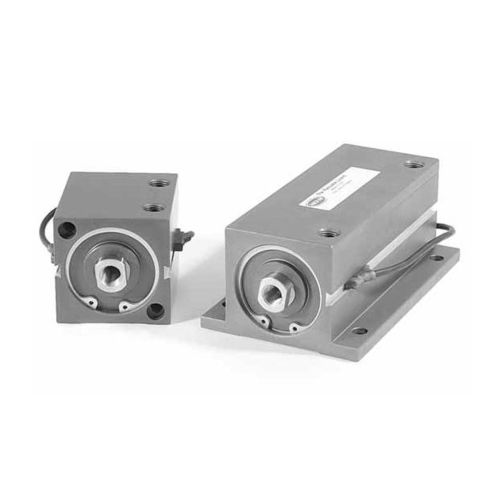

Short-Stroke Air Cylinders That Fit Into Any Design Square 1® air cylinders feature short strokes and a compact size to fit into any application. The square design of this double-acting, single-rod unit allows users to decrease the center-to-center spacing for applications that need multiple cylinders. Built for durability, the Square 1’s heavy walls are made from hard-anodized aluminum, both inside and outside the cylinder. Units with a one-inch stroke or larger come with a Teflon™ piston bearing and a longer bearing on the rod. Other construction features include hard chrome-plated stainless steel piston rods for long cylinder life, and a rod bushing lined with non-metallic high performance composite for high load-bearing strength. The Square 1 also comes pre-lubed with Magnalube-G® Teflon™-impregnated grease to resist corrosion and moisture. Bore sizes range from ¾ to 2 inches and strokes up to 6 inches, and operating air or hydraulic pressure is 150 psi. Key Specifications Features • - Available in bore sizes from ¾ to 2 inches and strokes to 6 inches • - Machined from aluminum extrusion • - Lightweight aluminum piston • - High-performance composite rod bearing for reduced wear • - Chrome-plated 303 stainless steel piston rod • - Female rod end with wrench flats • - Internally lubricated Buna-N O-ring • - Prelubed with Magnalube-G grease • - Crosshatch polished bore for lubrication retention and long seal life • - Air and hydraulic service to 150 psi • - Ambient and media temperature range from -25° to +250° F (-31° to +121° C) • - Three mounting styles: Side tap, face, side lug • - Many options to choose from • - Magnetic piston sensing available
