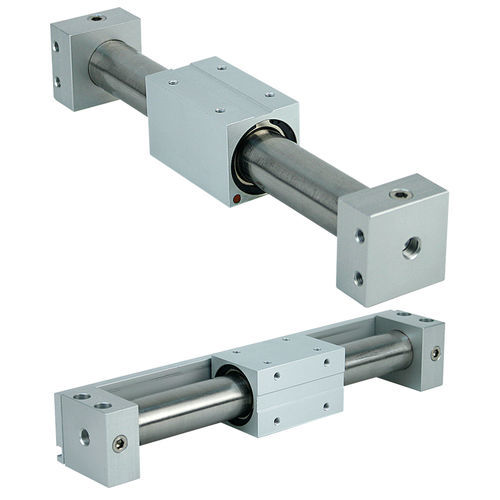

Pneumatic cylinder FGYB, FGYR series
rodlessdouble-actingmagnetically-coupled

pneumatic cylinder
pneumatic cylinder
pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Technology
rodless
Configuration
double-acting
Other characteristics
magnetically-coupled
Stroke

Max.: 1,500 mm (59.055 in)

Min.: 50 mm (1.969 in)

Description

Saves Space Without Sacrificing Output Motion When the application calls for a pneumatic cylinder inside a space-constrained area, our FGYB and FGYR Series of rodless cylinders can be an ideal choice. These cylinders are designed so there’s no piston rod protruding from the unit. Instead the external slider is magnetically coupled to the piston, providing good output motion while saving space. The FGYB Series is designed for basic mounting, and Series FGYR allows through-hole and tapped mounting and magnetic position sensing. Both styles include a tapped hole pattern on two adjacent sides of the slider. Key Specifications Features FGYB Features: • - Bore sizes: 10 to 40 mm • - Standard strokes: 50 to 1,500 mm • - Tapped hole pattern on two adjacent sides of the slider • - Nose-type mounting FGYR Features: • - Bore sizes: 15 to 40 mm • - Standard strokes: 50 to 1,500 mm • - Tapped hole pattern on two adjacent sides of the slider • - Block-type mounting • - Magnetic piston standard Technical Advantages • - Space-saving rodless cylinder design
