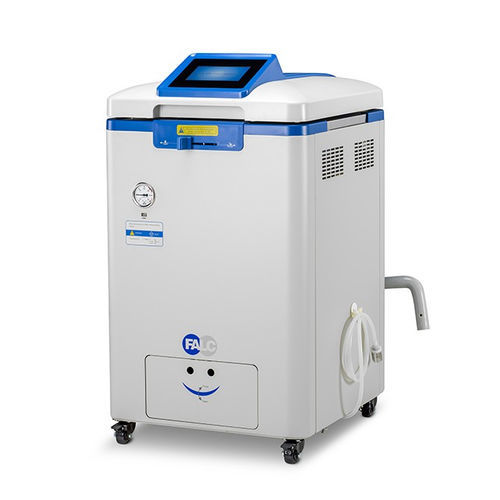

Laboratory autoclave ATV 1000T

automaticverticalelectronic

Short description
The ATV1100T vertical autoclave is engineered for sterilization of large laboratory volumes, providing versatile cycle options and intuitive operation via a touchscreen display. Integrated USB data export and supplied baskets ensure traceability and immediate usability in clinical and research environments.

Sterilization cycles

• Solid cycle
• Solid cycle with drying
• Liquid cycle
• Liquid cycle with warming function
• Agar cycle with melting, sterilization and cooling
• Waste sterilization cycle
• Customizable cycle

Safety features

• Burn protection
• Overpressure protection
• Safety valve
• Water level sensor
• Overheating protection
• Temperature monitoring
• Overvoltage and short-circuit protection
• Electric leakage protection
• Thermally insulated lid and casing
• Alarm notification

Additional technical features

• LCD touchscreen display
• System microcomputer for control, maintenance, calibration, traceability and data recording
• Cooling fan to accelerate temperature decrease at cycle end
• USB port for data saving and transfer
• Automatic pre-setting and start up to 6 days in advance
• Automatic internal discharge with 6-level steam collection speed
• Automatic water filling from external 28 L tank (reverse osmosis water)

3 safety devices

• Lid lock at set temperature
• Mechanical lock engaged before cycle start
• Internal double electric lock to prevent accidental opening

Data sheet
Item: 608.1002.12
Power: V/Hz 220-240/50-60
Weight: 127 Kg
Dimension (W×D×H): 582×880×1260 mm
Capacity: 110 L
Chamber Dimension (Dia×H): Ø 390×895 mm
Required water: Reverse osmosis water
Environment: 5-45°C, relative humidity ≤85%
Max pressure: 0.29 MPa
Program Memory: 60 cycles
Dimensions of basket (Dia×H): Ø 370×190 mm
Display range of pressure gauge: -0.1 - 0.5 MPa
Plug: 32 A
Drying temperature: 80-160°C
Temperature range for lid lock: 40-80°C for liquid cycles, 40-99°C for other cycles
Steam collector: included
Inner water tank: 28 L

Technical specifications

• Reference (Item): 608.1002.12
• Model: ATV1100T
• Capacity: 110 L
• Chamber dimension: Ø 390 × 895 mm
• Baskets supplied: 3 (dimensions Ø 370 × 190 mm)
• Power supply: 220-240 V, 50-60 Hz
• Weight: 127 Kg
• Overall dimensions: 582 × 880 × 1260 mm
• Max working pressure: 0.29 MPa
• Pressure gauge range: -0.1 to 0.5 MPa
• Program memory: up to 60 cycles
• Drying temperature range: 80 - 160 °C
• Lid lock temperature range: 40 - 80 °C (liquid cycles), 40 - 99 °C (other cycles)
• Internal water tank: 28 L; automatic filling from external tank using reverse osmosis water
• Steam collector: included
• Required water: Reverse osmosis water
