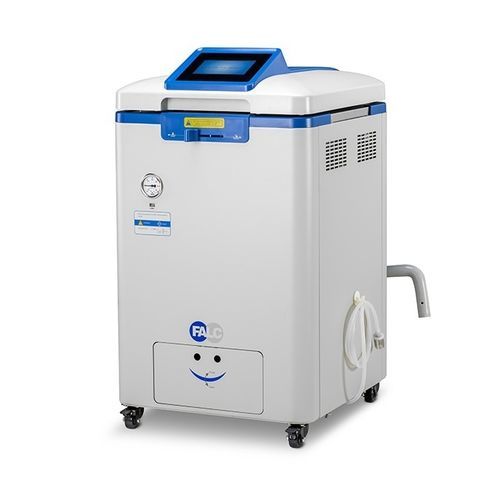

Laboratory autoclave ATV 600T

automaticverticalelectronic

Product overview
The ATV600T vertical floor-standing autoclave is designed for sterilization of large laboratory volumes. Multiple built-in cycles provide operational flexibility for diverse sample types. The LCD touchscreen enables intuitive control of process parameters and the integrated USB port allows secure data saving and transfer. Supplied with 2 baskets for immediate laboratory use.

Sterilization cycles:

• Solid cycle
• Solid cycle with drying
• Liquid cycle
• Liquid cycle with warming function
• Agar cycle with melting, sterilization and cooling
• Waste sterilization cycle
• Customizable cycle

Safety features:

• Burn protection
• Overpressure protection
• Safety valve
• Water level sensor
• Overheating protection
• Temperature monitoring
• Overvoltage and short-circuit protection
• Electric leakage protection
• Thermally insulated lid and casing
• Alarm notification

Additional technical features:

• LCD touchscreen display
• System microcomputer for control, maintenance, calibration, traceability and data recording
• Cooling fan to accelerate temperature reduction at end of cycle
• USB port for data saving and transfer
• Automatic pre-setting and start up to 6 days in advance
• Automatic internal discharge with 6-level vapor collection speed
• Automatic water filling from external 28 L tank using reverse osmosis water

3 safety devices:

• Lid lock at programmed temperature
• Mechanical lock to engage before cycle start
• Internal double electric lock to prevent accidental opening

Technical specifications

• Reference (SKU): 608.1002.07
• Model: ATV600T
• Capacity: 60 L
• Chamber dimension (Ø × H): Ø 390 × 505 mm
• Overall dimensions (W × D × H): 582 × 880 × 1060 mm
• Weight: 112 kg
• Inner water tank: 28 L
• Required water: Reverse osmosis water
• Operating environment: 5–45°C, relative humidity ≤85%
• Max pressure: 0.29 MPa
• Pressure gauge range: -0.1 – 0.5 MPa
• Program memory: 60 cycles
• Basket dimensions (Ø × H): Ø 370 × 190 mm
• Drying temperature: 80–160°C
• Door unlock temperature range: 40–80°C for liquid cycles, 40–99°C for other cycles
• Steam collector: included
• Plug: 16 A
• Includes: 2 baskets
