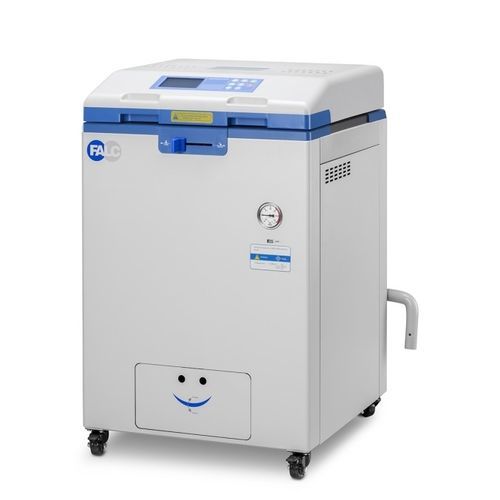

Autoclave for the food industry ATV600F

laboratoryautomaticvertical

Overview
The ATV600F is a vertical autoclave designed for food R&D and laboratory sterilization of large-volume solid and liquid samples. It provides multiple preset sterilization programs, an LCD interface and a USB port for monitoring, data export and traceability. Automatic F₀ calculation ensures repeatable sterilization compliant with food industry requirements. Two stainless-steel baskets are included for flexible loading of containers and samples.

Typical applications

• Food R&D and quality control
• Microbiology and fermentation laboratories
• Sterilization of culture media, liquids, solids and waste

Sterilization cycles

• Solid cycle
• Solid cycle with drying
• Liquid cycle
• Liquid cycle with warming/holding
• Agar cycle (melting, sterilization, cooling)
• Waste sterilization cycle
• Cycle with counterpressure (for closed containers)
• Spray cycle (rapid post-sterilization cooling)
• Customizable cycle

Safety features

• Burn protection
• Overpressure protection and safety valve
• Water level sensor
• Overheating protection and temperature monitoring
• Electrical protections: overvoltage, short-circuit, leakage
• Thermally insulated lid and casing
• Audible and visual alarms

Additional technical features

• LCD display for cycle monitoring
• System microcomputer for process control, maintenance, calibration, traceability and data logging
• Cooling fan to accelerate temperature reduction at end of cycle
• USB port for data export
• Automatic pre-setting and delayed start up to 6 days
• Automatic internal discharge with 6-level steam collection
• Automatic water filling from mains via purification device (required pressure 0.15–0.3 MPa)
• Required compressed air supply pressure: 0.28 MPa

Three safety devices

• Lid lock at set temperature
• Mechanical lock engaged before cycle start
• Internal double electric lock preventing accidental opening

Data sheet / Technical specifications

• Item / SKU: 608.1003.06 (Alternative: 608.1002.06)
• Capacity: 60 L
• Chamber material: SUS304 (stainless steel)
• Chamber dimensions (Ø×H): Ø400 × 505 mm
• Basket dimensions (Ø×H): Ø370 × 190 mm (2 stainless steel baskets included)
• External dimensions: 644 × 831 × 980 mm
• Weight: 135 kg
• Power supply: 220–240 V / 50–60 Hz; plug 16 A
• Max power: 2900 W
• Working temperature range: 45–138 °C
• Sterilization temperature range: 105–138 °C
• Temperature accuracy: 0.1 °C
• Sterilization/melting time range: 1–6000 min
• Melting temperature: 60–115 °C
• Warming/holding temperature: 45–79 °C
• Drying temperature: 80–160 °C (preset drying time 1–300 min)
• Rated working pressure: 0.35 MPa; max pressure: 0.29 MPa
• Program memory: up to 60 cycles
• Exhaust mode: fully automatic internal discharging with steam trapping bottle
• Way of opening lid: flip type
• Preset timer range: 0 min–6 days delayed
• Required water: reverse osmosis (purified) water
• Operating environment: 5–45 °C, relative humidity 10–85%
• Display range of pressure gauge: -0.1–0.5 MPa
• Plug: 16 A
