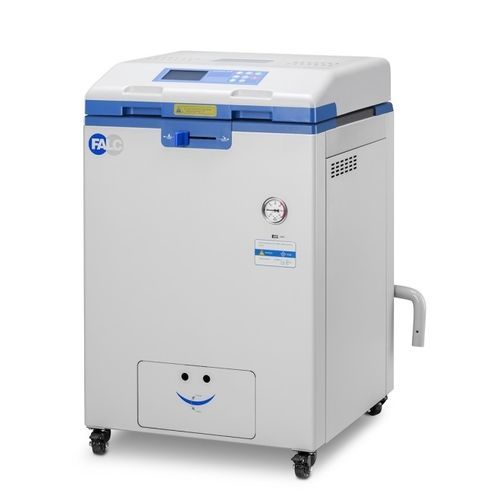

Laboratory autoclave ATV1100F

automaticwith counter pressurevertical

Overview
The ATV1100F is a floor-standing vertical autoclave designed for high-volume food R&D and laboratory sterilization. It provides programmable, repeatable thermal processes with automatic F₀ calculation to ensure compliance with food‑industry standards. The unit features an LCD display, USB port and three stainless‑steel baskets for flexible loading of solids, liquids and food samples.

Sterilization cycles:

• Solid cycle
• Solid cycle with drying
• Liquid cycle
• Liquid cycle with warming
• Agar cycle (melting, sterilization, cooling)
• Waste sterilization cycle
• Cycle with counterpressure (for closed containers)
• Cycle with spray (rapid post‑sterilization cooling)
• Customizable cycle

Safety features:

• Burn protection
• Overpressure protection
• Safety valve
• Water level sensor
• Overheating protection
• Temperature monitoring
• Overvoltage and short‑circuit protection
• Electric leakage protection
• Thermally insulated lid and casing
• Alarm notification

Additional technical features:

• LCD display
• Microcomputer control for process management, maintenance, calibration, traceability and data recording
• Cooling fan for faster temperature reduction at cycle end
• USB port for data export
• Automatic preset and start up to 6 days in advance
• Automatic internal discharge with 6-level steam collection speed
• Automatic water filling from mains via purification device (0.15–0.3 MPa)
• Required compressed air supply: 0.28 MPa

3 safety devices:

• Lid lock at set temperature
• Mechanical pre‑cycle lock
• Internal double electric lock to prevent accidental opening

Data sheet (key technical data)

• Item: 608.1003.11
• Power: 220-240 V / 50-60 Hz
• Weight: 160 kg
• Overall dimensions (W×D×H): 644×831×1180 mm
• Capacity: 110 L
• Chamber material: SUS304
• Chamber dimensions (Ø×H): Ø400×895 mm
• Basket dimensions (Ø×H): Ø370×250 mm (3 baskets included)
• Max power: 4600 W
• Rated working pressure: 0.35 MPa
• Maximum pressure: 0.29 MPa
• Sterilization temperature range: 105–138 °C
• Working temperature range: 45–138 °C
• Temperature accuracy: 0.1 °C
• Sterilization time range: 1–6000 min
• Melting temperature: 60–115 °C (time range: 1–6000 min)
• Warming temperature: 45–79 °C
• Drying temperature: 80–160 °C (preset drying time: 1–300 min)
• Timer preset: 0 min – 6 days delayed start
• Program memory: up to 60 cycles
• Exhausting mode: fully automatic internal discharge with steam trapping bottle
• Cooling fan included
• Automatic water filling via purification device (0.15–0.3 MPa)
• Required compressed air: 0.28 MPa
• Plug: 32 A
• Display range of pressure gauge: -0.1 – 0.5 MPa
• Environment: 5–45 °C, relative humidity 10–85%
• Necessary water: reverse osmosis water
• Steam collector: included

Technical specifications

• Item: 608.1003.11
• Power supply: 220-240 V, 50-60 Hz
• Rated and maximum power: 4600 W
• Weight: 160 kg
• External dimensions (W×D×H): 644×831×1180 mm
• Chamber: SUS304 stainless steel, Ø400×895 mm
• Baskets: Ø370×250 mm (3 pcs)
• Capacity: 110 L
• Temperature control accuracy: 0.1 °C
• Pressure rating: working 0.35 MPa, max 0.29 MPa
• Program memory: 60 cycles
• Interfaces: LCD, USB port
• Safety: multiple interlocks, sensors and electrical protections
