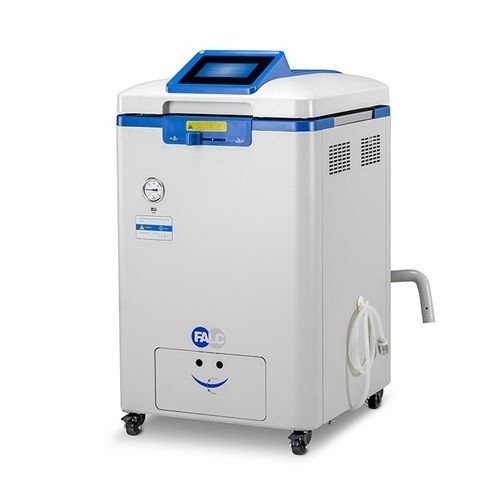

Laboratory autoclave ATV850T

automatictop-loadingvertical

Overview
The ATV850T vertical autoclave is engineered for sterilization of large laboratory and medical volumes. It provides multiple pre-set and customizable cycles, an LCD touchscreen for intuitive control, and a USB port for data export. The unit is delivered with two baskets for immediate use.

Sterilization cycles

• Solid cycle
• Solid cycle with drying
• Liquid cycle
• Liquid cycle with warming function
• Agar cycle with melting, sterilization and cooling
• Waste sterilization cycle
• Customizable cycle

Safety features

• Burn protection
• Overpressure protection
• Safety valve
• Water level sensor
• Overheating protection
• Temperature monitoring
• Overvoltage and short-circuit protection
• Electric leakage protection
• Thermally insulated lid and casing
• Alarm notification

Additional technical features

• LCD touchscreen display
• System microcomputer for control of sterilization process, maintenance, calibration, traceability and data recording
• Cooling fan to accelerate temperature reduction at cycle end
• USB port for data saving and transfer
• Automatic pre-setting and start up to 6 days in advance
• Automatic internal discharge with 6-level vapor collection speed
• Automatic water filling from external tank (28 L) with reverse osmosis water

3 safety devices

• Lid lock at set temperature
• Mechanical lock to engage before cycle start
• Internal double electric lock to prevent accidental opening

Data sheet
Item: 608.1002.09
Power: 220-240 V / 50-60 Hz
Weight: 117 Kg
Dimensions: 582 x 880 x 1060 mm
Capacity: 85 L
Chamber dimension (Ø × H): Ø 390 x 700 mm
Required water: Reverse osmosis water
Operating environment: 5–45°C, relative humidity ≤85%
Max pressure: 0.29 MPa
Program memory: 60 cycles
Basket dimensions (Ø × H): Ø 370 x 190 mm (2 baskets supplied)
Pressure gauge display range: -0.1 – 0.5 MPa
Plug: 32 A
Drying temperature: 80–160°C
Temperature range for lid lock: 40–80°C (liquid cycles), 40–99°C (other cycles)
Steam collector: included
Inner water tank: 28 L

Technical specifications

• Model name: ATV850T
• Item / Reference: 608.1002.09
• Capacity: 85 L
• Chamber diameter × height: Ø 390 × 700 mm
• Basket dimensions (Ø × H): Ø 370 × 190 mm (2 baskets supplied)
• Power supply: 220–240 V / 50–60 Hz
• Plug rating: 32 A
• Weight: 117 Kg
• Overall dimensions: 582 × 880 × 1060 mm
• Inner water tank capacity: 28 L (automatic filling from external tank; reverse osmosis water)
• Max working pressure: 0.29 MPa
• Pressure gauge display range: -0.1 – 0.5 MPa
• Program memory: up to 60 cycles (customizable)
• Drying temperature range: 80–160°C
• Temperature range for lid lock: 40–80°C (liquid cycles), 40–99°C (other cycles)
• Environmental operating range: 5–45°C; relative humidity ≤85%
• Safety: multiple protections including overpressure, overheating, overvoltage/short-circuit, electric leakage, water level sensor, safety valve, alarms
• User interface and data: LCD touchscreen, system microcomputer (traceability, calibration, data recording), USB data export
• Automatic functions: pre-set start (up to 6 days), automatic internal discharge (6-level vapor collection), automatic internal water handling
