1.Description
Fatech Electronic (CHINA) LTD develops RF cable lines surge protectors, for protection of coaxial systems, such as video surveillance systems, cable television systems. RF cable lines surge protectors with long lifetime, fast response features.
2. Characteristics

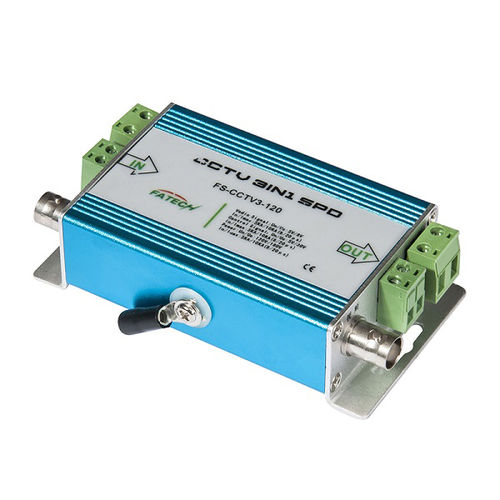

1) Camera plastform / CCTV surge protection device, with video, control and power line surge protection function.
2) High discharge current 10kA, fast response time 10-12ns.
3) With over-current, over-heating device inside, long lifetime.
4) Within LED light, installation convenient.
3. Electrical Parameters
1) Max. cont. operating voltage Uc: 220V
2) Nominal working current: 10A
3) Max. discharge current (8/20μs): 10KA
4) Nominal discharge current (8/20μs): 5KA
5) Type of Network: signal transmission system
6) Voltage protection level Up: <=700V
7) Protected mode: L-N;L-PE;N-PE
8) Protected Class: Class III
9) Testing standard: IEC61643-1:1998
