1. Description
FATECH surge protectors for signal system are used for protection of information technology systems, and radio frequency systems, we also call signal surge protectors, or coaxial surge protectors.
2. Characteristics

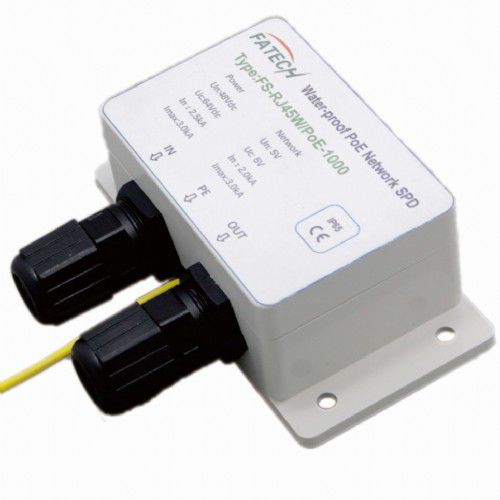

1) Water-proof RJ45 PoE surge protector.
2) Adopt power supply + signal surge protection integrated design.
3) Transmission rate: 1000M
4) Rated voltage 5Vdc, 12Vdc, 24Vdc, 48Vdc available.
5) Screw tie up installation, used outdoor.
6) Degree of protection: IP65.
3. Electrical Parameters
1) Max. cont. operating voltage Uc: 64V
2) Interface: RJ45
3) Max. discharge current (8/20μs): 3KA
4) Nominal discharge current (8/20μs): 2KA
5) Type of Network: Network signal transmission system
6) Nominal voltage 50(60)Hz Un: 48V
7) Degree of protection: IP65
8) Adapt transmission rate: 1000MBit/s
9) Insertion loss: <=0.5dB
10) Shell: Plastic (ABS)
11) Installation: Screw Tie up
12) Operation temperature range / humidity / altitude: -40℃~+80℃/30%~90%/3000m
13) Protected Line (Pairs): (1,2);(3,6);(4,5);(7,8)
14) Cable: CAT, 8 core 4 twisted-pair
