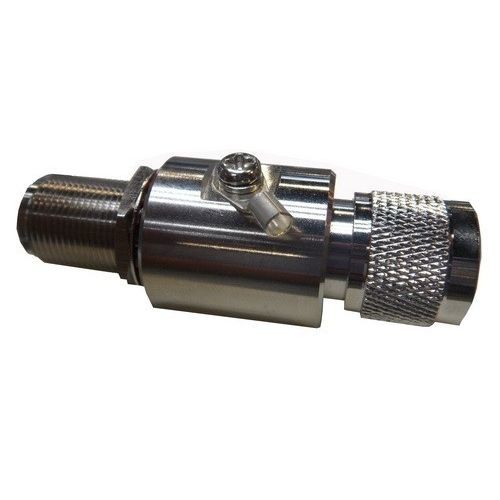

Type 3 surge protector FA-N-1800/10-K
DCcoaxialin-line

type 3 surge protector
type 3 surge protector
Add to favorites
Compare this product


Characteristics

Type
type 3
Other characteristics
DC, coaxial, in-line
Voltage

Min.: 0 V

Max.: 230 V

Primary current

Min.: 0 A

Max.: 10,000 A

Description

1.Description FATECH FA series antenna / RF surge protective device are designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. Incudling BNC, N, TNC connector. 2. Characteristics 1) FA-N-1800/10-K radio frequency surge protective device is designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. 2) High discharge capacity, low residual voltage. 3) Material brass. 4) Interface port: coaxial 3. Electrical Parameters 1) Interface port type: coaxial(N) 2) Type of network: Signal transmission system 3) Working frequency range: DC-1800Hz 4) Nominal discharge current (8/20μs): 10KA 5) Operating environment: Indoor or dry 6) Relative humidity: ≤95% 7) Storage temperature: -40℃~+85℃ 8) Operating temperature: -25℃~+70℃ 9) D.C.spark-over voltage: 230V 10) Characteristics impedance: 50Ω 11) Max. transmission power: 200W 12) Insertion loss: ≤0.3dB 13) Voltage standing wave ratio: ≤1.2 14) Testing standard: IEC 61643-11
