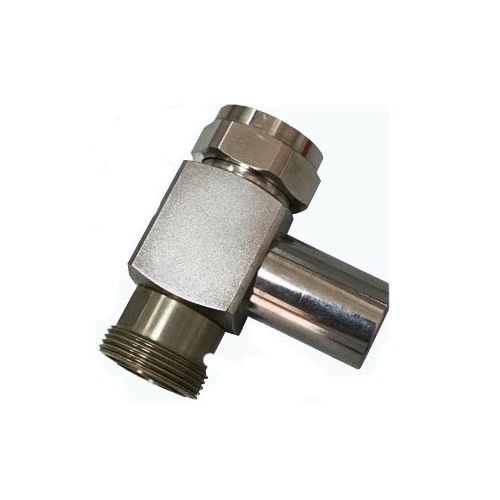

Type 3 surge arrester FA-7/16-900/10-L

coaxialin-line

1. Description FATECH FA series antenna / RF surge protective device are designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. Incudling BNC, N, TNC connector. 2. Characteristics 1) FA-7/19-***/***-L 1/4λ type antenna surge protector are designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. 2) High discharge capacity, low residual voltage. 3) Material brass. 4) Interface port: coaxial (7/16) 3. Electrical Parameters 1) Interface port type: coaxial(N) 2) Type of network: Signal transmission system 3) Working frequency range: 800-1000MHz 4) Nominal discharge current (8/20μs): 10KA 5) Operating environment: Indoor or dry 6) Relative humidity: ≤95% 7) Storage temperature: -40℃~+85℃ 8) Operating temperature: -25℃~+70℃ 9) Characteristics impedance: 50Ω 10) Max. transmission power: 200W 11) Insertion loss: ≤0.2dB 12) Voltage standing wave ratio: ≤1.2 13) Testing standard: IEC 61643-11:2000
