Wood edge-banding machine tempora F1000 professional

for panelsfor furniturewith glue applicator

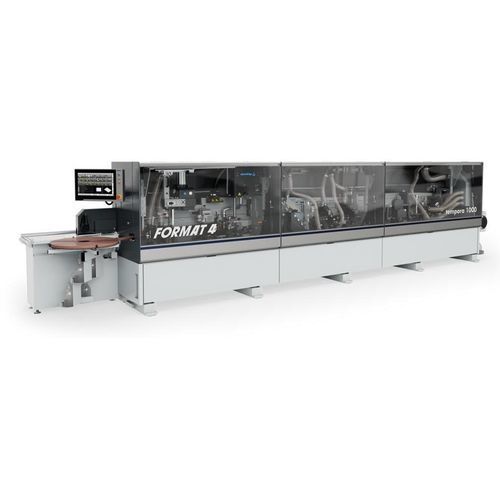

Description The Format4 tempora F1000 is an industrial edgebander built for continuous production. Its long, rigid machine frame and precise adjustment mechanisms deliver stable running and repeatable results for surface-sensitive panels. The upper pressure bar with belt-feed drive ensures gentle handling and uniform pressure distribution while the top-mounted glue pot offers fast heat-up and integrated cleaning functions.

Key functional highlights CNC-controlled corner rounding with motorized axes, patented multi-radius router cutters for consistent radii even on thin edges, and the choice of Classic, Professional or Performance equipment packages for tailored production setups.

Control & user interface 18" smartouch control with e-motion: unlimited storage for user programs, maintenance scheduler and linear-meter counter, graphical representation of units, direct selection and fine positioning of motorized axes from the panel (adjustment accuracy 0.01 mm), glue temperature management and automatic standby temperature reduction.

Processing & handling features

• Upper pressure bar with torsion-resistant aluminium profile and belt feed (e-motion) for gentle transport of panels.
• Centric edge jointing unit with two 3.7 kW motors (12,000 rpm) and diamond jointing cutters (D100 mm, H49 mm); routers operable in synchronous and counter-rotation.
• Top-mounted, controlled glue pot (Teflon coated) 0.6 kg for EVA, PO and PUR hotmelt glues; textured glue roller; integrated rinsing and cleaning; cartridge heater monitoring.
• Corner rounding unit with two independent 12,000 rpm motors, patented multi-radius router (R = 2 mm) and four servo axes for positioning with 0.01 mm fine adjustment; pneumatic engagement and precision linear guides.
• Chain feed options with rubberized support pads and automatic lubrication; feed speed variants by equipment package.
• Air cushion table option for easy handling of large or surface-sensitive panels (standard 1050 x 400 mm, expandable to 2000 x 400 mm).
• Optional automatic edge feeder with motorized clamp for fast profile changes.
• edgeControl (optional): Bluetooth edge and panel measurement transferring hundredth-of-a-millimeter values to the control for automatic calibration.

Variants Available in Classic, Professional and Performance packages. Packages differ by feed speed, premilling, multifunction trimming, radius scraping and end-trimming units to match production requirements.

Technical specifications

• Model series: tempora F1000
• Installation length: 8000 mm
• Edge thickness: 0.4 – 12 mm
• Workpiece height (adjustable): 8 – 60 mm
• Corner rounding unit: edge thickness 0.4 – 3.0 mm; workpiece height 10 – 60 mm
• Chain feed speeds: Classic/Professional: 12 + 20 m/min; Performance: 12 – 25 m/min
• Edge jointing unit: 2 × 3.7 kW, 12,000 rpm; diamond jointing cutters D = 100 mm, H = 49 mm
• Corner rounding unit: 2 × 12,000 rpm motors; patented multi-radius router (R = 2 mm); 4 servo axes; fine adjustment 0.01 mm
• Glue pot: Teflon coated, 0.6 kg capacity; suitable for EVA, PO, PUR; textured glue roller; rinsing and cleaning integrated
• Upper pressure bar: aluminium tension profile; adjustable workpiece height 8 – 60 mm; belt feed drive (e-motion)
• Feed/premilling/chip removal: continuous chip removal 0 – 3 mm; chip removal can be linked to edge thickness
• Air cushion table: supporting surface 1050 x 400 mm (expandable to 2000 x 400 mm)
• Control: 18" smartouch with e-motion; network connection; extensive program memory
• Optional: automatic edge feeder, mitre fence for narrow parts, barcode scanner (wireless), edgeControl Bluetooth measurement
