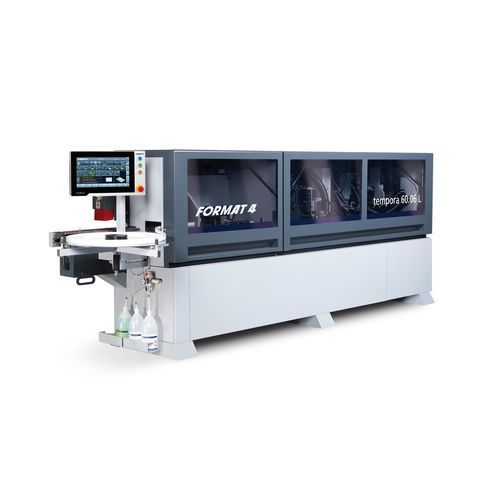

Automatic edge-banding machine tempora F600 60.06L

for panelsfor furniturewith glue applicator

Product overview
Format4 tempora F600 with glueBox: PUR edge banding without a glue pot. Designed for high productivity with fast changeovers and processing of both coiled and strip edging.

General description
The tempora F600 line combines speed, flexibility and repeatable finishing. Modern edge processing aggregates and a rigid machine body ensure stability at high feed speeds. Intuitive smartouch controls and configurable programs enable quick setup and consistent results for industrial production.

Key product features
The tempora F600 60.06L supports corner rounding for workpieces up to 60 mm height and accepts edge thicknesses from 0.4 to 6 mm (variant-dependent). Patented advantEdge (air-motion) achieves near-invisible joints on co-extruded and laser edges. The glueBox fuses a thin PUR adhesive tape for PUR bonding without a glue pot, reducing handling and total adhesive costs.

glueBox — PUR edge banding without glue pot

• Fast: ready to use in approx. 90 seconds
• Flexibility: available in coils of 25 and 100 m, heights 16, 19, 28 and 40 mm
• Comfort: tool-free PUR tape replacement
• Efficiency: quick switch to conventional glue pot (EVA/PUR) when required

smartouch control and automation
smartouch touchscreen (10.4" or 15"/16") provides unlimited program memory, maintenance plan, odometer, visual unit representation and fine adjustment of motorised aggregates (accuracy up to 0.01 mm). Network capable for integration into production lines.

edgeControl (optional)
Wireless edgeControl measures edge and panel thickness to 0.01 mm and transmits data to smartouch by Bluetooth. Automatic value sorting and calibration reduce setup errors and material waste.

advantEdge / air-motion
The patented air-motion aggregate enables optical zero-joints for high-gloss and co-extruded edges. Workpiece-controlled switching minimises color-change downtime and improves finish homogeneity.

Highlights & benefits

• High performance for industrial continuous operation
• Customisable production solutions
• Robust construction with precision components
• Multiple specification packages with high-tech options
• Ergonomic, networked control for operator comfort
• High throughput and tailored financing options

Included machine functions / notable aggregates

• Pressure beam: manual crank (m-motion) or motorised (x-motion PLUS)
• Infeed fence / premilling depth: manual, 0–2 mm
• Air cushion table: 0.75 kW blower; support 1050 x 400 mm (expandable)
• Premilling units: two diamond-coated spiral cutters; electronic positioning on e-motion
• Infrared lamp: preheats edge for better adhesion on cold panels
• Gluepot (EVA/PUR): Teflon coated, 1.5 kg capacity; short warm-up (~10 min); optional scraper cleaning
• Pressure zone: motor-driven roller presses with two pneumatic settings
• Sawing / end trimming: two independent saws, 12,000 rpm, 0°–10° tilt
• Top & bottom trimming: multifunctional, two high-frequency units, quick setup
• Nesting Package: optimises workpieces with hinge holes or acute angles
• Corner rounding: single/dual motor, for edges 0.4–3.0 mm and heights up to 60 mm

Models / Variants
Variants include tempora F600 60.06L glueBox and tempora F600 60.06L with conventional gluepot. Differences concern installation length, glue system and automation level (m-motion, x-motion PLUS).

Technical specifications

• Model designation: tempora F600 60.06L
• Installation length (variant shown): approx. 4,412 mm (other variant ~4,872 mm)
• Edge thickness accepted: 0.4–6 mm (variant-dependent)
• Panel thickness: 8–60 mm
• Corner rounding height capability: up to 60 mm
• Glue systems: glueBox (heat-activated PUR tape) and conventional gluepot (PUR/EVA)
• Gluepot capacity: 1.5 kg (~375 m on 19 mm panel)
• Warm-up time: gluepot ~10 min; glueBox ready ~90 s
• Automation: m-motion and x-motion PLUS
• Control: smartouch touchscreen, network capable
• Optional: edgeControl (Bluetooth measurement)
