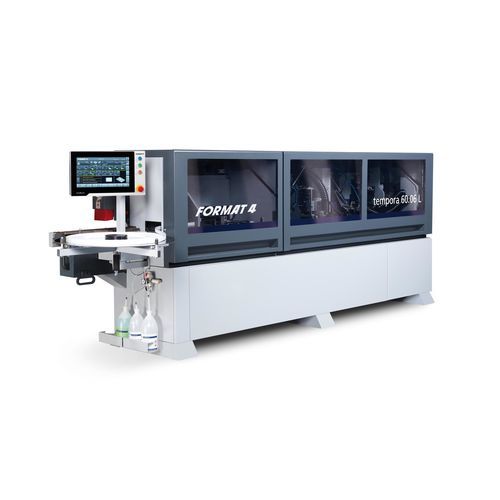

Automatic edge-banding machine F600 60.06L glueBox

for woodfor pre-glued bandsfor panels

Overview
Format4 tempora F600 with glueBox: PUR-edge banding without glue pot. Revolutionarily simple, clean and economically highly profitable. Edgebanding needs to be as quick, easy and efficient as possible. The Format4 tempora models combine speed, productivity, flexibility and ease of use. The final finishing results when processing both coiled and strip material convince with incredibly high standards.

Design & Operation
Modern and optimised edge processing aggregates and a flexible machine body guarantee absolute stability and reliability even at the highest processing speeds. User friendly control options (x-motion PLUS and m-motion) ensure repeatability. The intuitive smartouch control panel (10" or 16" touchscreen) provides configurable operating programs and quick manual change of aggregates.

glueBox (PUR adhesive tape)
The revolutionary glueBox makes PUR glue processing easier and more convenient. Instead of PUR adhesive in a glue pot, a thin PUR adhesive strip in the glueBox is fused almost invisibly between edge material and workpiece. Heat and water resistance, a very small glue joint and reduced glue consumption are advantages of PUR with glueBox. Considering investment, adhesive consumption and cleaning costs, glueBox can save approx. 70% in effective field of application compared to conventional PUR granulate processing.

Key product highlights

• Constantly high performance in industrial continuous operation
• Customer-specific optimised production solutions
• Solid design with premium components
• Many specification package variations with high-tech solutions
• Complete edge processing
• Premium user comfort
• Quality and precision from Austria

glueBox — features

• Fast: Ready to use in only 90 seconds
• Flexibility: Available in coiled lengths of 25 and 100 metres and in heights of 16, 19, 28 and 40 mm
• Comfort: Tool-free PUR tape replacement
• Efficiency: Almost immediate switching to conventional glue pot (EVA) and vice versa

Control & Automation
smartouch control unit (10.4" or 15" / 10" or 16" options referenced) with m-motion or x-motion PLUS reduces manual settings. Functions include unlimited memory for user-defined edge programs, maintenance plan, odometer for total metres used, representation of units and functions, aggregate selection with fine adjustment (up to 1/100 mm), glue temperature setting and automatic temperature reduction in standby.

Notable aggregates & options

• Edge jointing / premilling units: Two counter-rotating, activation-controlled and individually adjustable premilling units with diamond coated spiral cutters for tear free edges and first class edge processing. Depth of cut electronically positionable on e-motion models.
• Air-motion / advantEdge: Patented air-motion aggregate for optical zero-joint (especially for co-extruded and laser edges). Controlled by the workpiece and activatable from control unit. Provides homogenised finish, especially on high gloss materials.
• edgeControl (Bluetooth measurement): Wireless measuring unit records edge and workpiece thickness to hundredths of a millimetre and transfers values to smartouch; controller recognises and sorts values, enabling automatic calibration and elimination of manual measuring errors.
• Gluepot (EVA/PUR): Teflon-coated gluepot capacity ~1.5 kg (~375 metres of edge material on a 19 mm panel). Short warm-up time (~10 minutes). Optional scraper cleaning unit for fast cleaning when changing glue types.
• Infrared lamp: Operation-controlled quartz infrared lamp warms edge surface before glue unit to improve adhesion on cold workpieces.
• Pressure zone / roller press: Motor-driven roller presses the edge material onto the workpiece; application control prevents smearing or movement. Two conical pressure rollers close the glue joint above and below; two pneumatic pressure settings selectable for strip vs coiled material.
• Corner rounding unit: Single or dual motor corner rounding unit (workpiece height up to 60 mm). Finishes workpiece corners including soft/forming materials; processes edging 0.016"–⅛" (0.4–3.0 mm) and heights to 60 mm.
• Multifunctional trimming unit: Top and bottom trimming for flush, radius or bevel edges with two independent high-frequency motors (12,000 rpm); quick setup and optional motorised adjustment via control panel.
• Sawing module / end trimming: Two independent saw units (12,000 rpm) with linear guides; tilting 0°–10° (manual or pneumatic/electronic options).
• Air cushion table (option): For easy and gentle handling of large and surface-sensitive workpieces. Placed on the machine infeed with 0.75 kW blower motor; supporting surface 1050 x 400 mm (expandable to 2000 x 400 mm).

Edge feed & material compatibility
Depending on application, coiled and strip material from 0.4 up to 6 mm can be processed. Workpiece thickness capability up to 60 mm. Complete edge processing including premilling, gluing (glueBox or gluepot), pressure, trimming, corner rounding and finishing aggregates.

Usage benefits

• High speed and productivity with industrial continuous operation
• Reduced changeover times and glue handling effort (with glueBox)
• High repeatability and operator convenience via smartouch and automation options
• Optimised finish quality (invisible joints, zero-joint with air-motion/advantEdge)

Caractéristiques / spécifications techniques

• Model series / denomination: tempora F600
• Installation length (example variant): 191" (4,872 mm) for tempora F600 60.06L glueBox (other variant: 173 6/8" / 4,412 mm)
• Edge thickness processed: 0.016" – ½" (0.4 – 6 mm) depending on variant (some variants specify up to 0.25" / 6 mm)
• Workpiece thickness: 8 – 60 mm (3⅜" – 2⅜" shown, upper range 60 mm)
• Automation options: m-motion and x-motion PLUS (variable motorised aggregates / pressure beam options)
• Glue systems: glueBox (PUR adhesive tape) and conventional gluepot (PUR/EVA) with Teflon coating; gluepot capacity ~1.5 kg; gluepot warm-up ~10 minutes
• Corner rounding: single or dual motor corner rounding unit; up to 60 mm workpiece height
• Premilling: Two counter-rotating units with diamond coated spiral cutters; electronic positioning on e-motion models
• End trimming: Two saw units, 12,000 rpm; tilting 0°–10°
• Multifunctional trimming: Top/bottom trimming with high-frequency motors (12,000 rpm)
• edgeControl: Bluetooth edge and workpiece measurement to 0.01 mm, automatic transfer to smartouch
• Air cushion table: 1050 x 400 mm support (expandable to 2000 x 400 mm); blower motor 0.75 kW
• GlueBox readiness: Ready in approx. 90 seconds; available tape lengths 25 m and 100 m; tape heights 16 / 19 / 28 / 40 mm
